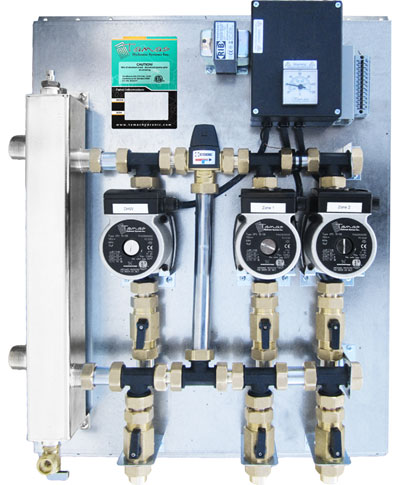

Low Loss Header Panel T-LL-00-1120 Model Shown

Low Loss Header Panel

  • Description
  • Specifications
  • Available Configurations
  • Resources

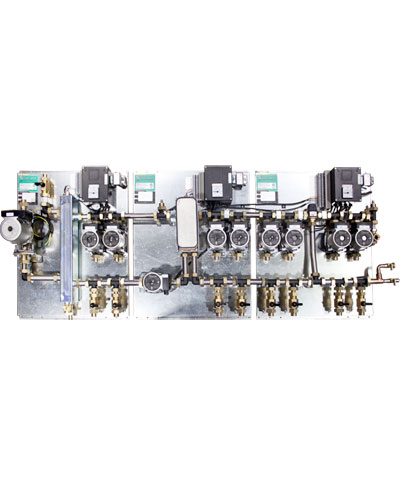

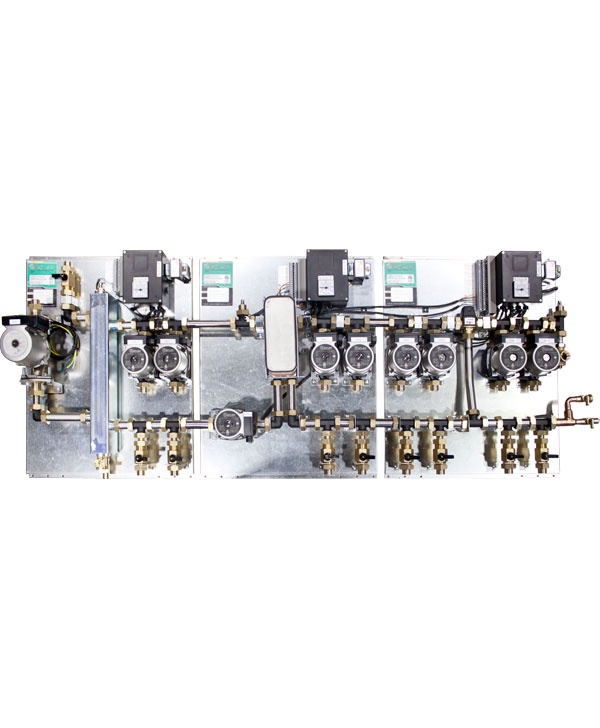

Tamas Low Loss Header Panels are designed to meet almost any system requirement. With its space saving design and simple connections the panel can help reduce labor time of a system install. The panel is also available with Domestic Hot Water priority which can enable D.H.W to have precedence over the other zones. The panel can also be configured for larger systems where six or more zones may be required and can be expanded to meet these requirements with additional panels.

Optional Ball Valve Kit available for this product

  • Dimensions

    Height: 26in (662mm)

    Width: 22in (560mm)

    Depth: 12in (305mm)

  • Flow

    Configuration Specific. See Resources.

  • Head

    Configuration Specific. See Resources.

  • Max. Temperature

    95°C / 203°

  • Max. Pressure

    3 Bar / 45 PSI

  • Enclosure

    Galvanized Steel Backpan with Powder Coated Steel

Model Number Low Loss Header Panels

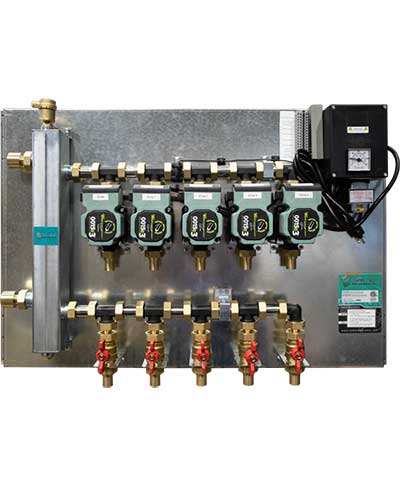

T-LL-0D-0100 Low Loss Header Panel with (1) DHW Zone
T-LL-0D-0110 Low Loss Header Panel with (1) High Temp Zone and (1) Low Temp Zone
T-LL-0D-0120 Low Loss Header Panel with (1) TMV, (1) DHW Zone with Priority and (2) Low Temp Zones
T-LL-0D-0130 Low Loss Header Panel with (1) DHW Zone with Priority and (3) Low Temp Zones
T-LL-0D-0200 Low Loss Header Panel with (1) DHW Zone with Priority and (1) High Temp Zones
T-LL-0D-0210 Low Loss Header Panel with (1) TMV, (1) DHW Zone with Priority, (1) Hi Temp Zone and (1) Low Temp Zone
T-LL-00-0110 Low Loss Header Panel with (1) Hi Temp Zone and (1) Low Temp Zone

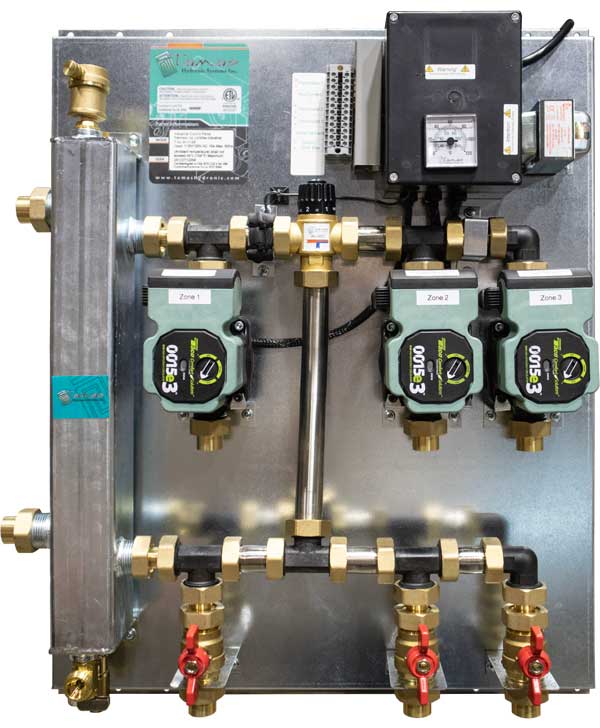

T-LL-00-0120 Low Loss Header Panel with (1) Hi Temp Zone and (2) Low Temp Zones
T-LL-00-0210 Low Loss Header Panel with (2) Hi Temp Zones and (1) Low Temp Zone
T-LL-00-0100 Low Loss Header Panel with (1) Hi Temp Zone
T-LL-00-0200 Low Loss Header Panel with (2) Hi Temp Zones

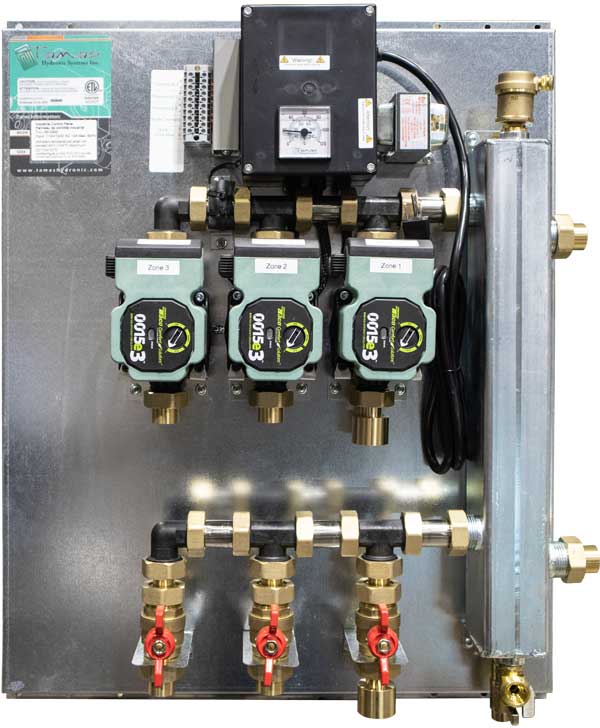

T-LL-00-0300 Low Loss Header Panel with (3) Hi Temp Zones

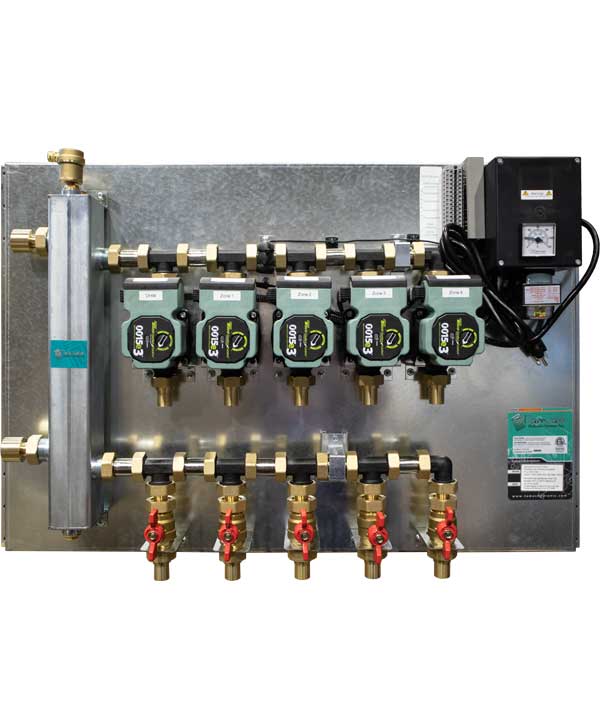

T-LL-00-0400 Low Loss Header Panel with (4) Hi Temp Zones
