Booster Pump Package

Booster Pump Package

  • Description
  • Specifications
  • Available Configurations
  • Resources

The Tamas Hydronic Pump package is a versatile and adaptable system that can be assembled in many different configurations to suit site needs. Our standard pumps that we offer are from Grundfos, and our Hydronic VFD is programmable for up to five pumps. The Tamas control box that is attached to our pump package frame comes with L.E.D. operational lights, and manual override switches that can be set to automatic(V.F.D. run), or manual(full output), or in the off position. These features allow any potentially servicing that may be required to be carried out in safe manner without having to compromise the building load and keep the system running.

Control Logic: Able to be wired to accommodate duty standby, parallel, and cascade applications.

Applications: Booster Pumps (up to 5 per VFD Controller)

Load Sizes: 1/2 Hp to 300 Hp

  • Dimensions

    Custom dimensions apply to this product

  • Flow

    Configuration Specific. See Resources.

  • Head

    Configuration Specific. See Resources.

  • Max. Temperature

    Configuration Specific. See Resources.

  • Max. Pressure

    Configuration Specific. See Resources.

  • Enclosure

    Galvanized Steel Backpan with Powder Coated Cover

Model Number Tamas Booster Pump Packages

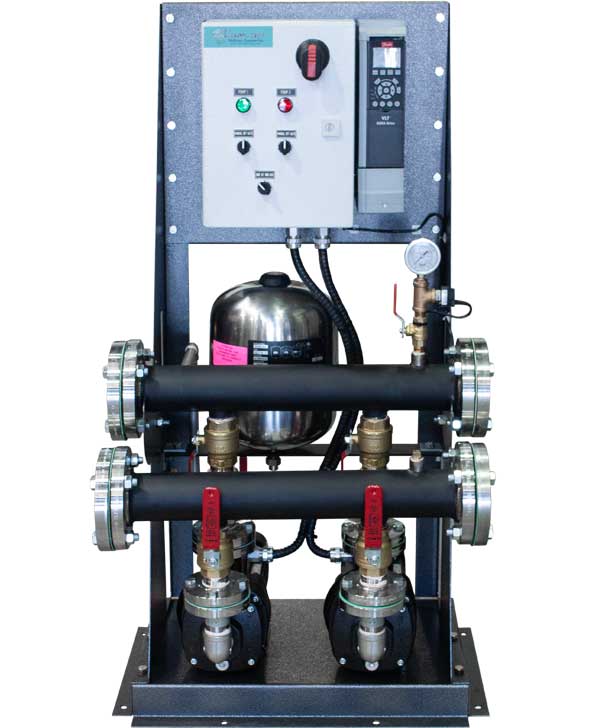

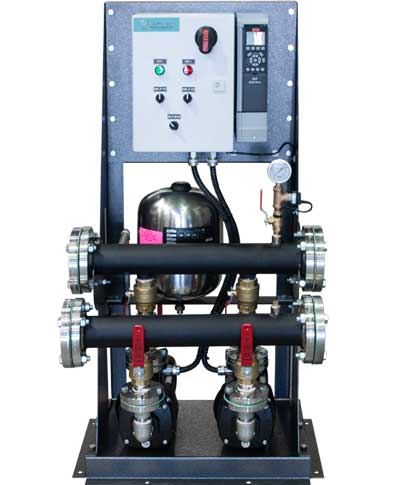

T-B-2G-VFD-C-CR5-3-1-208 Booster Pump Package, 1HP-208V, (2) Pumps CR5-3, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-2G-VFD-C-CR5-4-1.5-208 Booster Pump Package, 1.5HP-208V, (2) Pumps CR5-4, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-2G-VFD-C-CR10-2-1.5-208 Booster Pump Package, 1.5HP-208V, (2) Pumps CR10-2, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-2G-VFD-C-CRN10-2-1.5-208 Booster Pump Package, 1.5HP-208V, (2) Pumps CRN10-2, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-2G-VFD-C-CR10-3-3-208 Booster Pump Package, 3HP-208V, (2) Pumps CR10-3, Stainless Steel Check Valve and Manifold with Cascade Control System

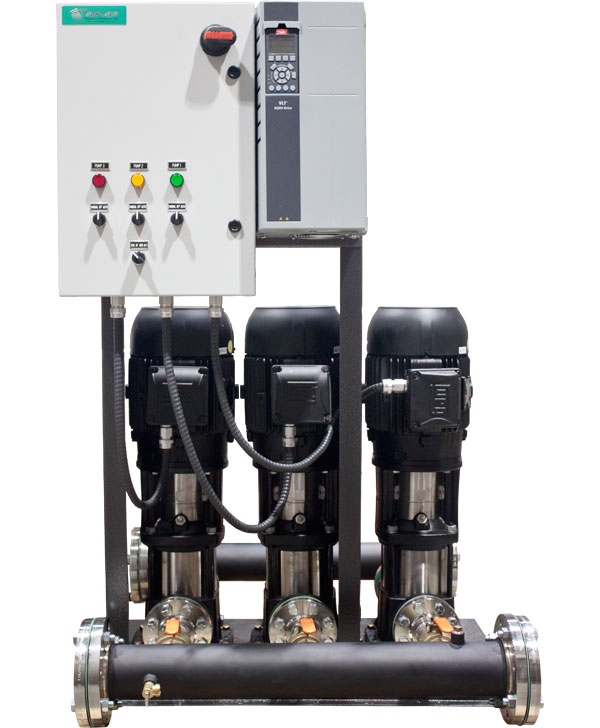

T-B-3G-VFD-C-CR10-2-1.5-208 Booster Pump Package, 1.5HP-208V, (3) Pumps CR10-2, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-3G-VFD-C-CR10-3-3-208 Booster Pump Package, 3HP-208V, (3) Pumps CR10-3, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-3G-VFD-C-CRN10-4-3-208 Booster Pump Package, 3HP-208V, (3) Pumps CRN10-4, Stainless Steel Check Valve and Manifold with Cascade Control System

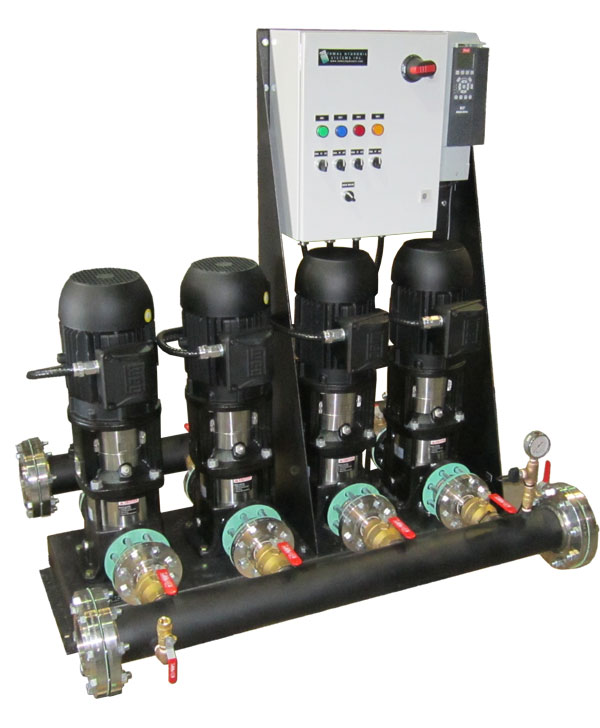

T-B-4G-VFD-C-CR10-3-3-208 Booster Pump Package, 3HP-208V, (4) Pumps CR10-3, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-3G-VFD-C-CR20-2-5-208 Booster Pump Package, 5HP-208V, (3) Pumps CR20-2, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-2G-VFD-C-CR20-2-5-208 Booster Pump Package, 5HP-208V, (2) Pumps CR20-2, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-2G-VFD-C-CR15-2-5-208 Booster Pump Package, 5HP-208V, (2) Pumps CR15-2-5, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-3G-3VFD-C-CR10-2-1.5-208 Booster Pump Package, 1.5 HP-208V, (3) Pumps CR10-2, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-2G-VFD-C-CR10-4-3-208 Booster Pump Package, 3HP-208V, (3) Pumps CR10-4, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-4G-VFD-C-CR20-1-3-208 Booster Pump Package, 3HP-208V, (4) Pumps CR20-1, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-3G-VFD-C-CR20-3-7.5-208 Booster Pump Package, 7.5HP-208V, (3) Pumps CR20-3, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-4G-VFD-C-CR20-6-15-208 Booster Pump Package, 15HP-208V, (4) 50 HZ Pumps CR20-6, Stainless Steel Check Valve and Manifold with Cascade Control System
T-B-4G-VFD-C-CR15-7-15-208 Booster Pump Package, 15HP-208V, (4) Pumps CR15-7, Stainless Steel Check Valve and Manifold with Cascade Control System

    Features:


    ×
