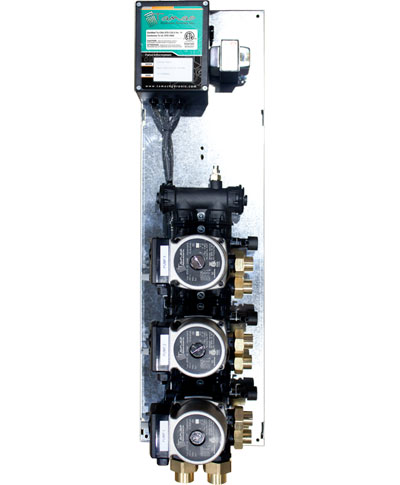

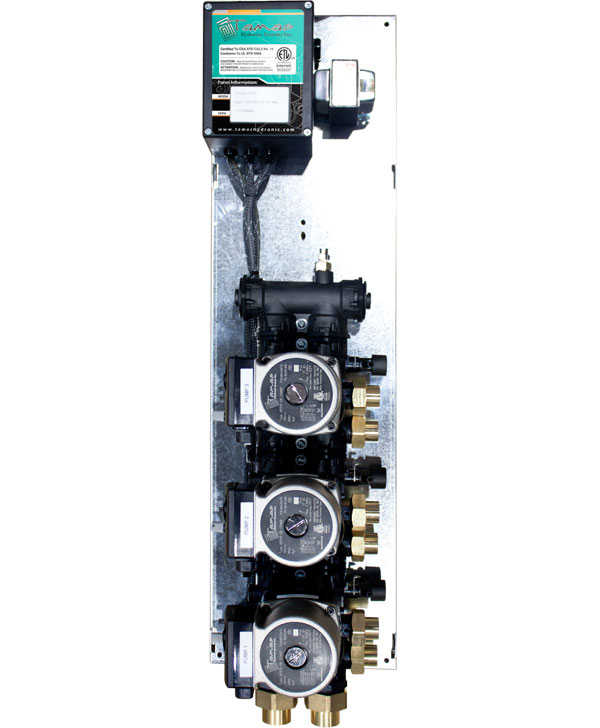

high Temperature Panel T-HI-OP-0300-Z Model Shown

High Temperature Panel

  • Description
  • Specifications
  • Available Configurations
  • Resources

Tamas zone panels are suitable for a variety of applications. Panels run off of timer logic, exhibit a pump exercise feature and are managed by a microprocessor. Each panel contains a remote temperature indicator, auxiliary contacts (for boiler demand/zone demand), and thermostat contacts for the respective number of zones. All systems are equipped with a three speed adjustable pump (with composite housing). Systems are approved for DHW distribution. Available in 1-6 zone models.

  • Dimensions

    Height: 26in (662mm)

    Width: 22in (560mm)

    Depth: 12in (305mm)

  • Flow

    Configuration Specific. See Resources.

  • Head

    Configuration Specific. See Resources.

  • Max. Temperature

    95°C / 203°

  • Max. Pressure

    3 Bar / 45 PSI

  • Enclosure

    Galvanized Steel Backpan with Powder Coated Steel

Model Number High Temperature Panels
T-HI-OP-0100-Z High Temperature Panel with (1) High temp Zone
T-HI-OP-0200-Z High Temperature Panel with (2) High temp Zones
T-HI-OP-0300-Z High Temperature Panel with (3) High temp Zones
T-HI-OP-0400-Z High Temperature Panel with (4) High temp Zones
T-HI-OP-0500-Z High Temperature Panel with (5) High temp Zones
T-HI-OP-0600-Z High Temperature Panel with (6) High temp Zones

Wiring Diagrams


    Features:


    ×
