Z-Block: Hydronic Zoning Block

  • Description
  • Specifications
  • Available Configurations
  • Resources

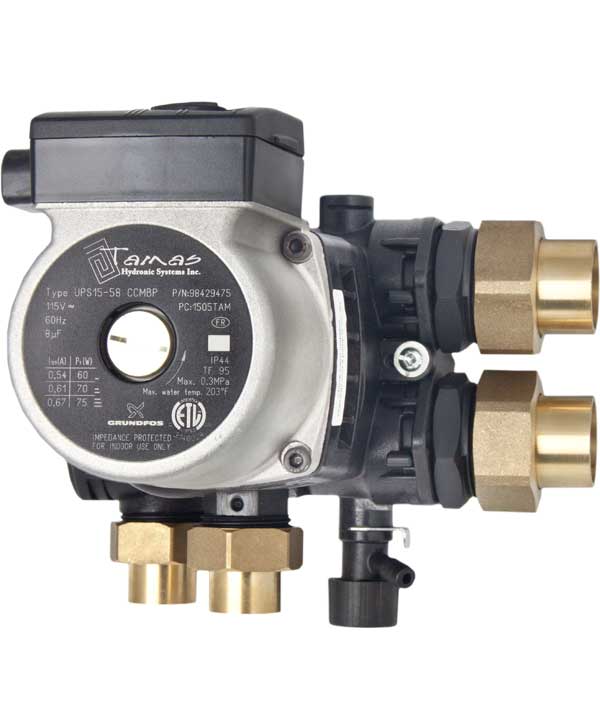

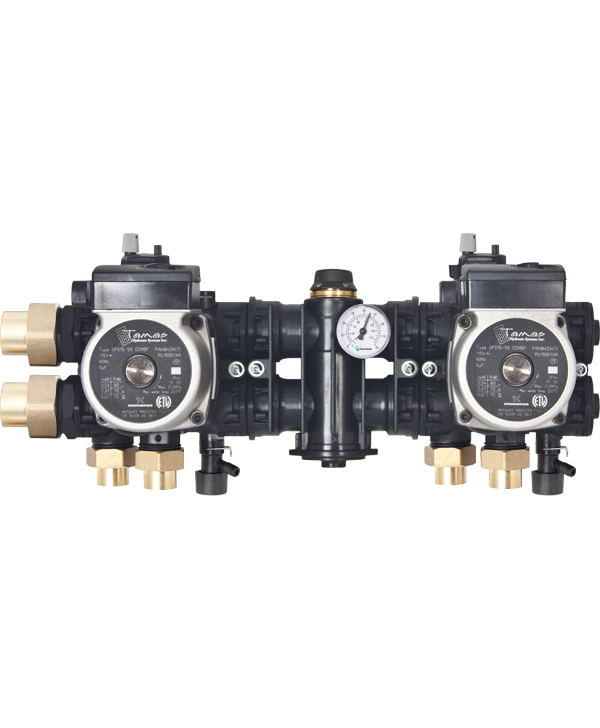

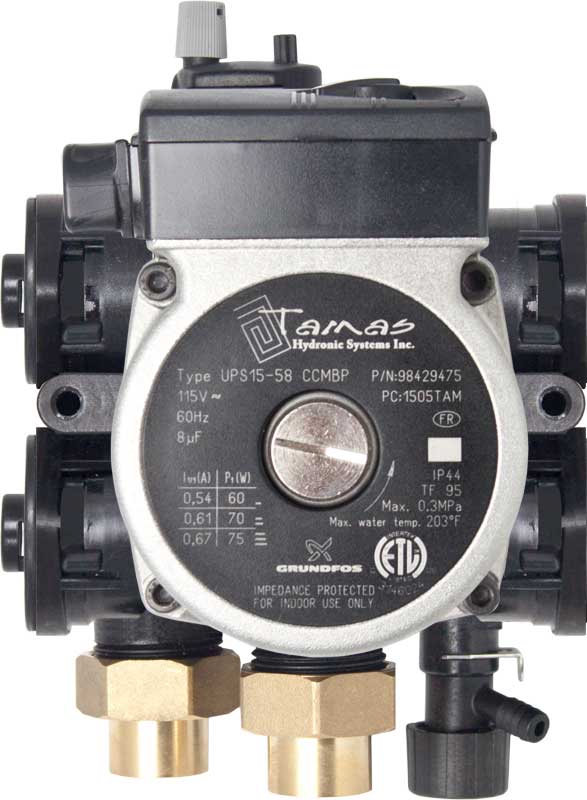

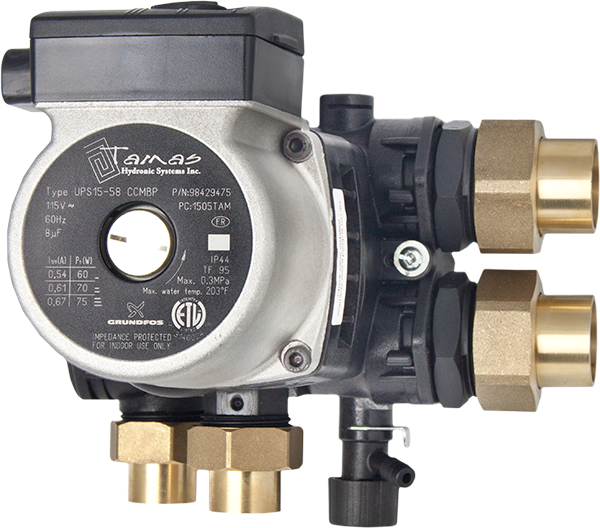

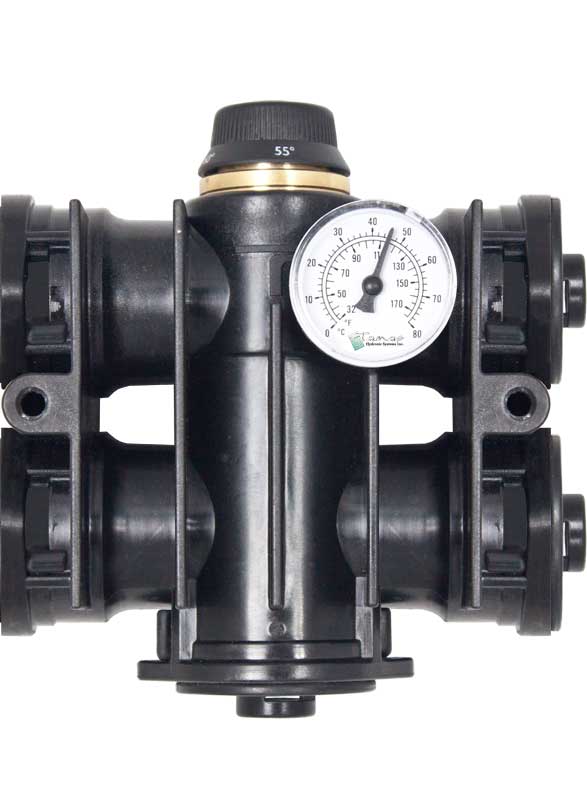

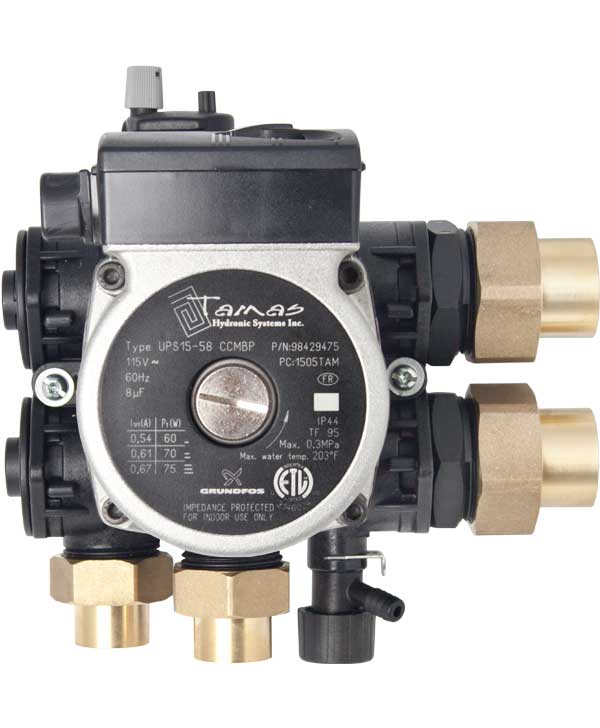

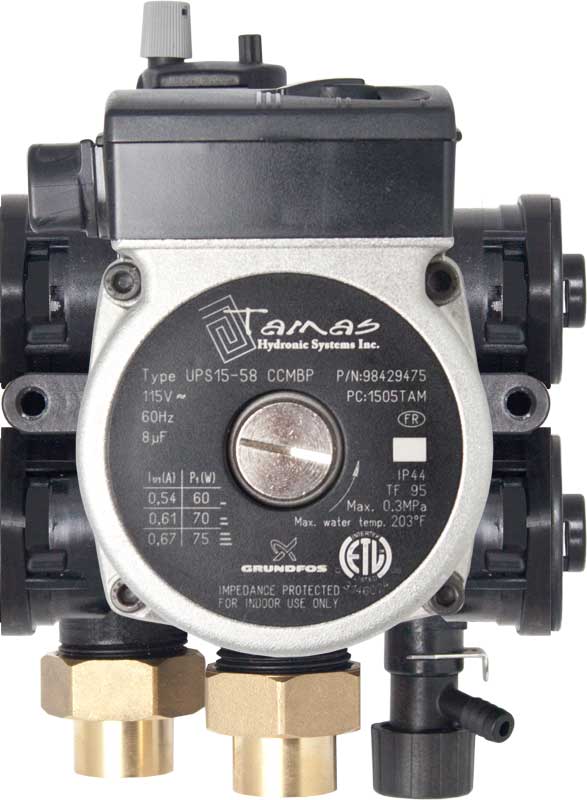

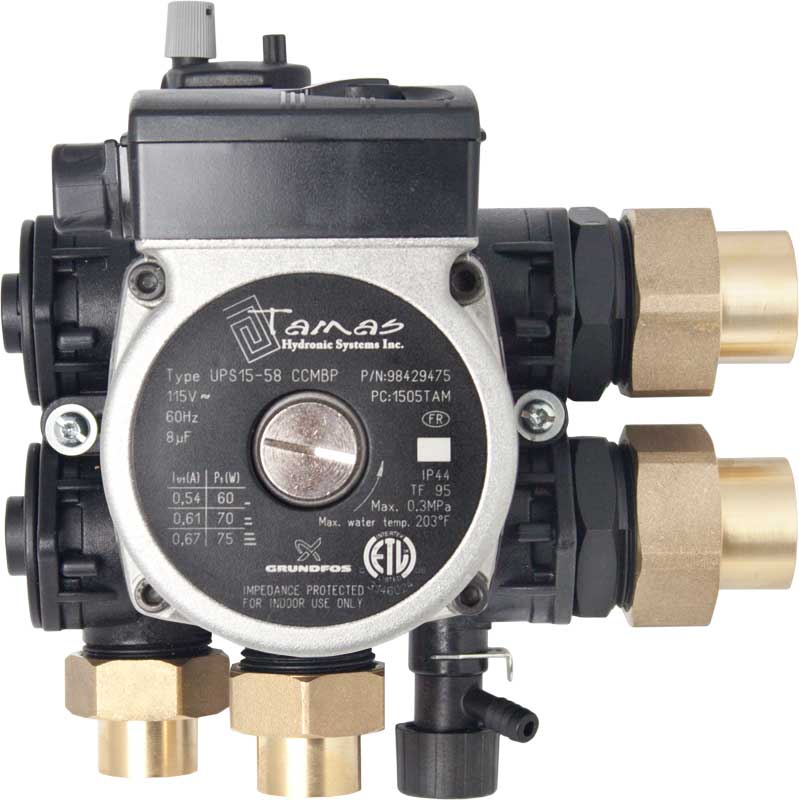

The Tamas Z-block is an expandable, all-inclusive, plug-and-play zoning device, capable of pumping for a variety of different applications. When paired with the new Tamas 3-Way Mixing Valve, you can easily add temperature mixing control to a Z-block zoning application. The Z-Block is expandable to suit a range of zoning/temperature requirements, and can also be used as an injection pump or boiler pump. It's unique modular design significantly reduces install time and cost.

The Z-Block is designed for multiple applications:

1) Zoning in a hydronic system for individual or multiple zones. The maximum amount of connected Z-block modules is 10 in a single supply to the manifolds.

2) As an injection pump in a multiple zone application, to temper the water temperature.
(Optional part #025- 0005 180° End Connection for creating primary/secondary piping arrangement. Injection pump controller not supplied.)

3) As a boiler pump in a multiple zone application.
(Optional part #025-0005 180° End Connection for creating primary/secondary piping arrangement.)

Optional Ball Valve Kit available for this product

  • Dimensions

    Height: 8in (200mm)

    Width: 5in (130mm)

    Depth: 8in (199mm)

  • Flow

    0 - 17 U.S. GPM

  • Head

    0.1 - 19 Feet

  • Max. Temperature

    95°C / 203°

  • Max. Pressure

    3 Bar / 45 PSI

Model Number Z Block Configurations
025-0050 Z- Block ( Tamas Zone Block Kit) Box Product
Part Number Optional Zone Block Parts
025-0026 Z-Block Ball Valve Kit

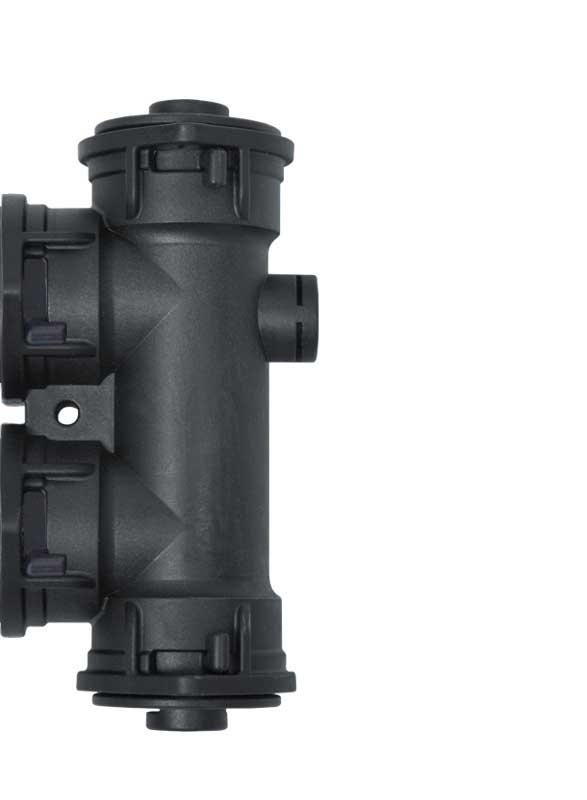

025-0005 Z-Block 180 End Connector(Primary/Secondary Connection)
025-0051 Z-Block Control Module HBX Zone 500
