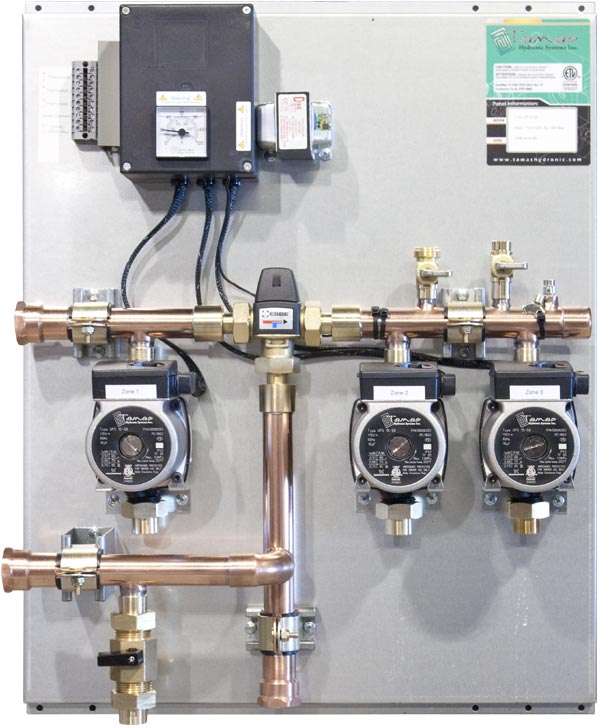

High/Low Temperature Combination Panel T-HI-TP-1340 Model Shown

High/Low Temperature Combination Panel

  • Description
  • Specifications
  • Available Configurations
  • Resources

The Tamas high/low is specifically designed to accommodate multiple temperature applications in the same system, up to a maximum of 7 zones. This versatile panel can also be used with a dedicated condensing boiler. The 3-speed pumps used will accommodate the flow requirements for most warm and hot water requirements. A DHW priority configuration is also an option for this panel. With a compact design the panel allows for a great option for retrofit or new installs. With many configurations available the high/low panel is one of the most versatile products offered.

  • Dimensions

    Height: 26in (662mm)

    Width: 22in (560mm)

    Depth: 12in (305mm)

  • Flow

    Configuration Specific. See Resources.

  • Head

    Configuration Specific. See Resources.

  • Max. Temperature

    95°C / 203°

  • Max. Pressure

    3 Bar / 45 PSI

  • Enclosure

    Galvanized Steel Backpan with Powder Coated Steel

Model Number Hi-Low Temperature Panels
T-HL-TP-0110 Hi-Low Temp Panel with (1) TMV, (1) Hi Temp Zone and (1) Low Temp Zone
T-HL-TP-0120 Hi-Low Temp Panel with (1) TMV, (1) Hi Temp Zone and (2) Low Temp Zones
T-HL-TP-0130 Hi-Low Tem Panel with (1) TMV, (1) Hi Temp Zone and (3) Low Temp Zones
T-HL-TP-0140 Hi-Low Temp Panel with (1) TMV, (1) Hi Temp Zone and (4) Low Temp Zones
T-HL-TP-0150 Hi-Low Temp Panel with (1) TMV, (1) Hi Temp Zone and (5) Low Temp Zones
T-HL-TP-0160 Hi-Low Temp Panel with (1) TMV, (1) Hi Temp Zone and (6) Low Temp Zones
T-HL-TP-0210 Hi-Low Temp Panel with (1) TMV, (2) Hi Temp Zone and (1) Low Temp Zone
T-HL-TP-0220 Hi-Low Temp Panel with (1) TMV, (2) Hi Temp Zones and (2) Low Temp Zones
T-HL-TP-0230 Hi-Low Temp Panel with (1) TMV, (2) Hi Temp Zones and (3) Low Temp Zones
T-HL-TP-0240 Hi-Low Temp Panel with (1) TMV, (2) Hi Temp Zones and (4) Low Temp Zones
T-HL-TP-0250 Hi-Low Temp Panel with (1) TMV, (2) Hi Temp Zones and (5) Low Temp Zones
T-HL-TP-0310 Hi-Low Temp Panel with (1) TMV, (3) Hi Temp Zones and (1) Low Temp Zone
T-HL-TP-0320 Hi-Low Temp Panel with (1) TMV, (3) Hi Temp Zones and (2) Low Temp Zones
T-HL-TP-0330 Hi-Low Temp Panel with (1) TMV, (3) Hi Temp Zones and (3) Low Temp Zones
T-HL-TP-0340 Hi-Low Temp Panel with (1) TMV, (3) Hi Temp Zones and (4) Low Temp Zones
T-HL-TP-0410 Hi-Low Temp Panel with (1) TMV, (4) Hi Temp Zones and (1) Low Temp Zone
T-HL-TP-0420 Hi-Low Temp Panel with (1) TMV, (4) Hi Temp Zones and (2) Low Temp Zones
T-HL-TP-0430 Hi-Low Temp Panel with (1) TMV, (4) Hi Temp Zones and (3) Low Temp Zones
T-HL-TP-0510 Hi-Low Temp Panel with (1) TMV, (5) Hi Temp Zones and (1) Low Temp Zone
T-HL-TP-0520 Hi-Low Temp Panel with (1) TMV, (5) Hi Temp Zones and (2) Low Temp Zones
T-HL-TP-0610 Hi-Low Temp Panel with (1) TMV, (6) Hi Temp Zones and (1) Low Temp Zone

Note: Domestic Priority Optional, No charge extra

Features:
