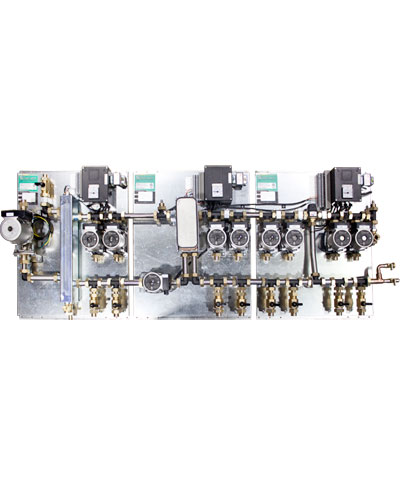

Low Loss Header Boiler Panel Low Loss Header Panel Connection
Where to Buy

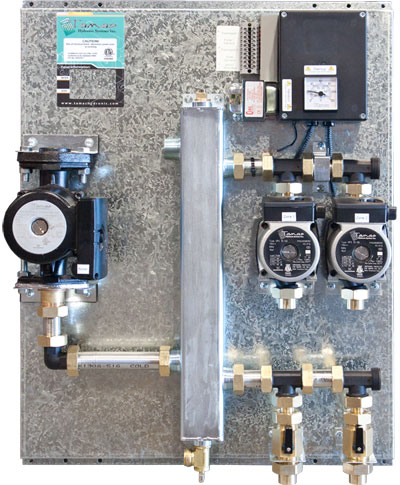

Low Loss Header Boiler Panel

Product Description

The Tamas Low Loss Header Panel provides a compact, streamlined solution for hydronic systems that require efficient flow separation and balanced temperature control. Its space-saving layout and simplified connections help reduce installation time while supporting consistent system performance.

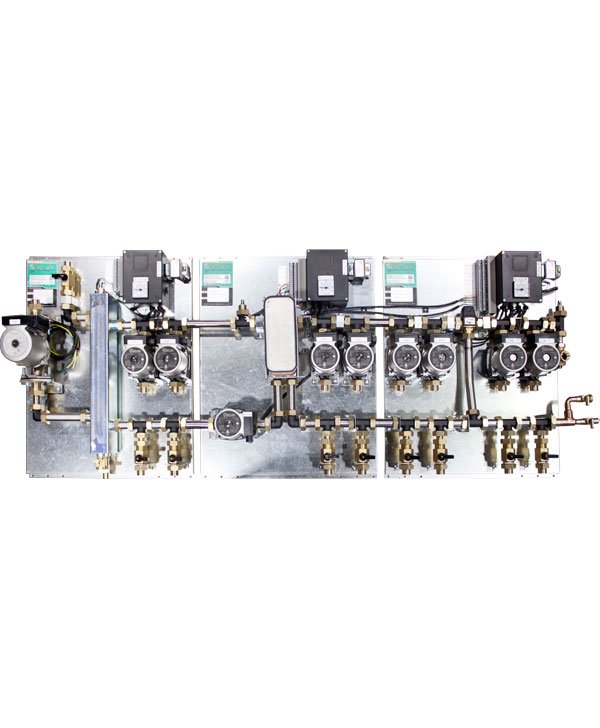

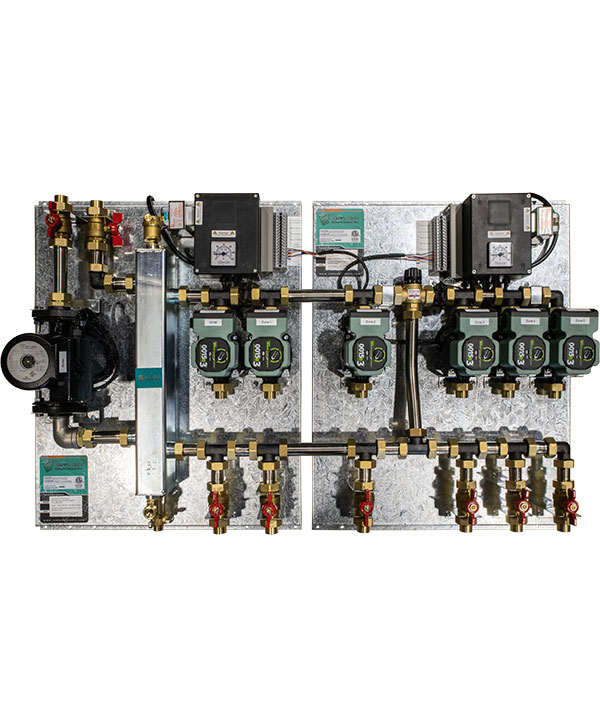

Panels can be configured for both small and large system designs, including applications with six or more heating zones by adding expansion panels as needed. Domestic Hot Water (DHW) priority is also available, allowing the system to automatically prioritize hot water production when demand occurs.

Read More ▾

Features

  • dhw DHW Priority Domestic Hot Water option
  • material Materials Stainless Steel Pipe with
    Powder Coated Steel enclosure
  • temp Connections Connects directly to the boiler
Configurations Resources
Model Number Low Loss Header Boiler Panels
T-LL-BO-1010 Low Loss Header Panel with 0015e3 Pumps, (1) Boiler Pump and (1) Low Temp Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-LL-BD-1100 Low Loss Header Panel with 0015e3 Pumps, (1) Boiler Pump and (1) DHW Zone with Priority

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-LL-BO-1020 Low Loss Header Panel with 0015e3 Pumps, (1) Boiler Pump and (2) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-LL-BD-1110 Low Loss Header Panel with 0015e3 Pumps, (1) Boiler Pump, (1) High Temp Zone and (1) Low Temp Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-LL-BO-2010 Low Loss Header Panel with UPS 26-99 Pumps, (1) Boiler Pump and (1) Low Temp Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-LL-BD-2100 Low Loss Header Panel with UPS 26-99 Pumps, (1) Boiler Pump and (1) DHW Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-LL-BO-2020 Low Loss Header Panel with UPS 26-99 Pumps, (1) Boiler Pump and (2) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-LL-BD-2110 Low Loss Header Panel with UPS 26-99 Pumps, (1) Boiler Pump, (1) DHW Zone with Priority and (1) Low Temp Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
