Weil-McLain Boiler Panel

Product Description

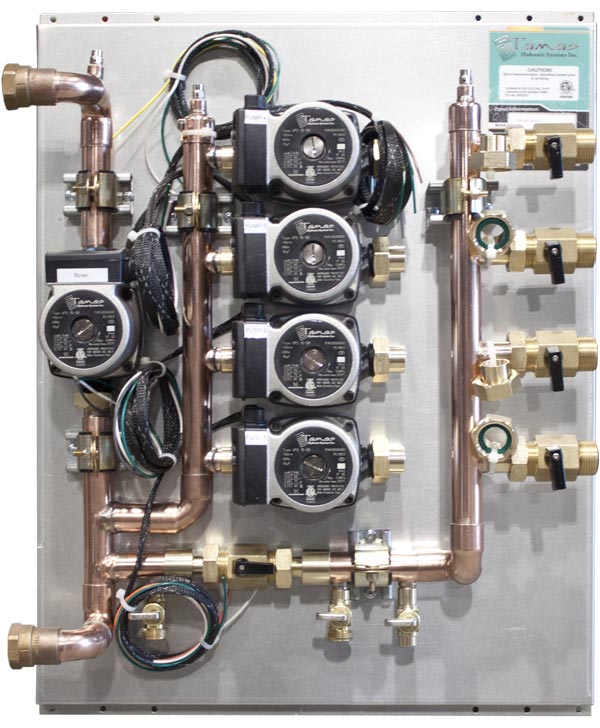

The Weil-Mclain Eco boiler panel is designed to work in perfect unison with the boiler. The panel connects directly to the right side of the Eco Boiler, with supply/return connections matching up perfectly. Plug and play design that features trouble free wiring and no electrician required. The panel can be configured to suite a variety of applications such as D.H.W., radiant floor, staple up, and low temperature applications.

Features

  • dhw DHW Priority Domestic Hot Water option
  • material Materials Polished Copper Pipe with
    Powder Coated Steel enclosure
  • temp Connections Connects directly to the boiler
Configurations Resources
Model Number Weil-McLain Stainless Steel ECO Panels 70/110/115 (DHW)
T-BO-WD-1100-S Stainless Steel ECO Panel with (1) DHW Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-WD-1200-S Stainless Steel ECO Panel with (1) DHW Zone with Priority and (1) Hi Temp Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-WD-1300-S Stainless Steel ECO Panel with (1) DHW Zone with Priority and (2) Hi Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-WD-1400-S Stainless Steel ECO Panel with (1) DHW Zone with Priority and (3) Hi Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
Model Number Weil-McLain Z-Block ECO Panels 70/110/115 (DHW)
T-BO-WD-1100-Z Stainless Steel ECO Panel with (1) DHW Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-WD-1200-Z Stainless Steel ECO Panel with (1) DHW Zone with Priority and (1) Hi Temp Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-WD-1300-Z Stainless Steel ECO Panel with (1) DHW Zone with Priority and (2) Hi Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-WD-1400-Z Stainless Steel ECO Panel with (1) DHW Zone with Priority and (3) Hi Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
Model Number Weil-McLain ECO Panels 70/110/115 (DHW)
T-BO-WD-1100 ECO Panel with (1) DHW Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-WD-1200 ECO Panel with (1) DHW Zone with Priority and (1) Hi Temp Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-WD-1300 ECO Panel with (1) DHW Zone with Priority and (2) Hi Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-WD-1400 ECO Panel with (1) DHW Zone with Priority and (3) Hi Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
