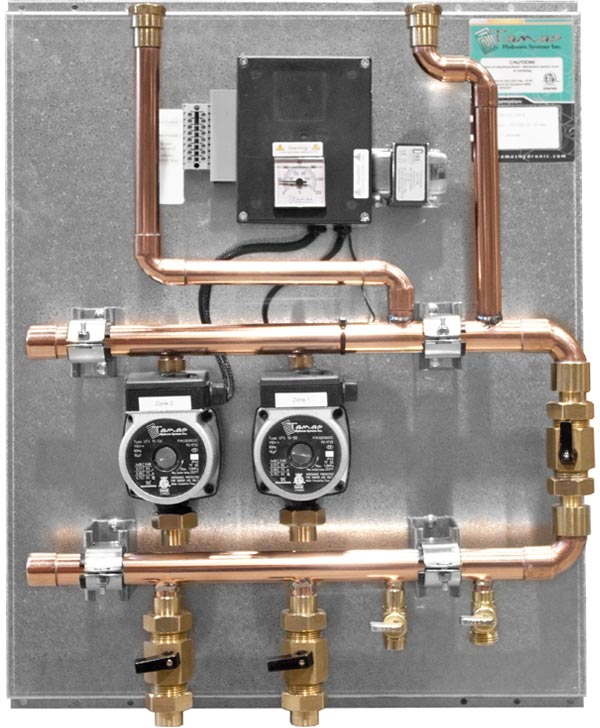

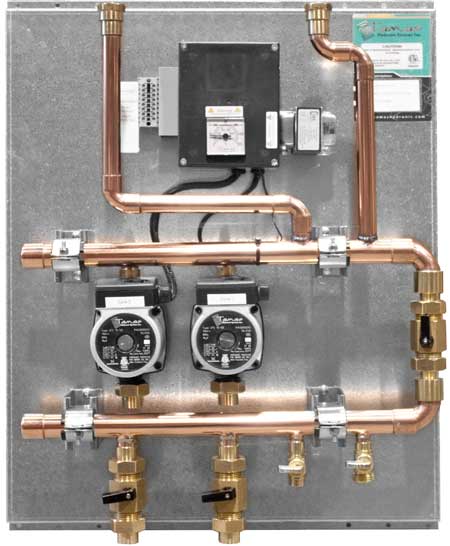

Viessmann B1HE Boiler Panel

Product Description

The Tamas Viessmann B1HE Series Boiler Panel line offers a flexible, expandable solution for a wide range of hydronic applications and building sizes. Each panel is purpose-built to integrate seamlessly with the Viessmann B1HE Boiler Series, ensuring optimal system performance and simplified installation.

When a Tamas Viessmann B1HE Series Boiler Panel is connected to a Viessmann B1HE boiler, it manages water distribution and flow to match system demand. The platform supports optional secondary injection mixing, as well as both low- and high-temperature heating zones. Up to five zones can be incorporated into a single panel assembly, with additional configurations available upon request.

Read More ▾

Features

  • dhw DHW Priority Domestic Hot Water option
  • material Materials Polished Copper Pipe with

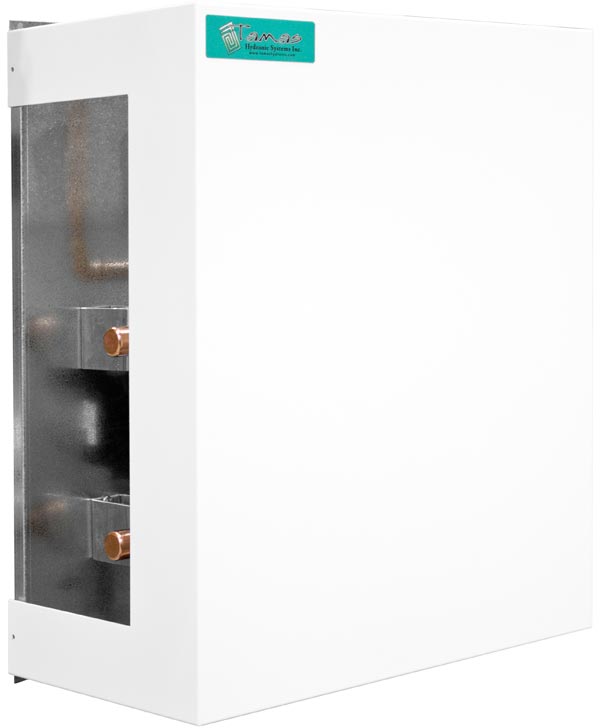

    Powder Coated Steel enclosure
  • temp Connections Connects directly to the boiler
Configurations Resources
Model Number Viessmann 100-W B1HE Boiler Panels
T-BO-VO-1101-N Vitodens 100 B1HE Panel with (1) Zone pump, and (1) Take Off

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-VO-1100-N Vitodens 100 B1HE Panel with (1) Zone pump

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm

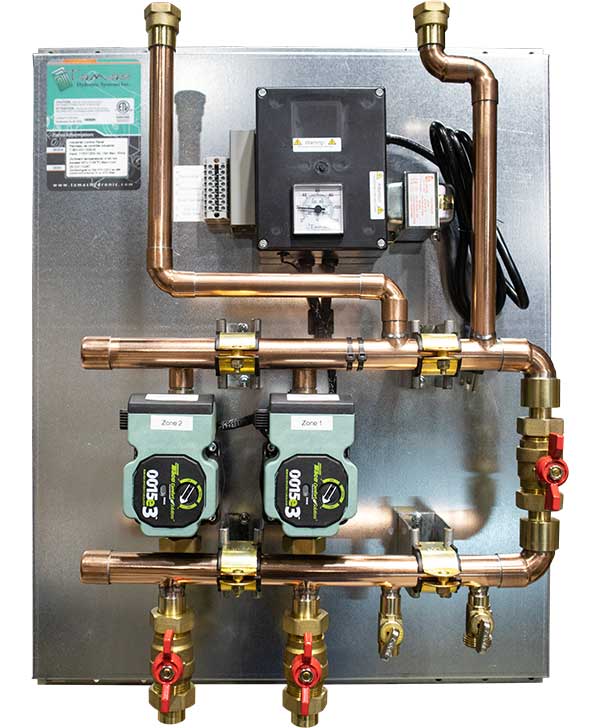

T-BO-VO-1200-N
T-BO-VO-1200-N
Vitodens 100 B1HE Panel with (2) Zone pumps

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-VO-1300-N Vitodens 100 B1HE Panel with (3) Zone pumps

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-VO-1400-N Vitodens 100 B1HE Panel with (4) Zone pumps

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm

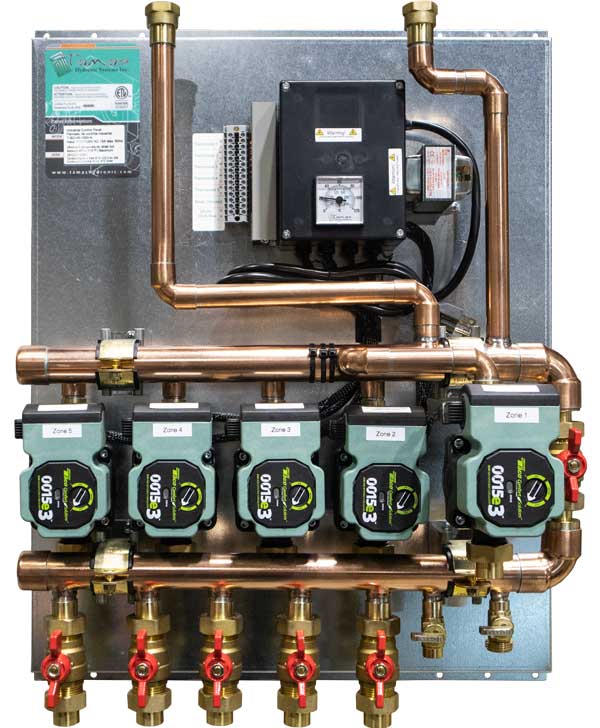

T-BO-VO-1500-N
T-BO-VO-1500-N
Vitodens 100 B1HE Panel with (5) Zone pumps

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-VO-1110-N Vitodens 100 B1HE Panel with (1) High Temp Zone pump, (1) TMV, and (1) Low Temp Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-VO-1210-N Vitodens 100 B1HE Panel with (2) High Temp Zone pumps, (1) TMV, and (1) Low Temp Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-VO-1220-N Vitodens 100 B1HE Panel with (2) High Temp Zone pumps, (1) TMV, and (2) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-VO-1230-N Vitodens 100 B1HE Panel with (2) High Temp Zone pumps, (1) TMV, and (3) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-VO-1320-N Vitodens 100 B1HE Panel with (3) High Temp Zone pumps, (1) TMV, and (2) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
