TMV Manifold Panel

Product Description

The Tamas Manifold Cabinet has been designed for distributing hydronic heat for radiant floor heating systems. The panel can be utilized for floor warming and area heating such as bathrooms, basements, kitchens, sunrooms and tiled floors.

The panel uses a stainless steel manifold to provide consistent heat distribution through the different zones. A thermostatic mixing valve and 3 speed circulating pumps function to temper and distribute the water to the system.

Features

  • Power Custom Zone Sizes 2-12 loops available to
    suit any application.
  • material Materials Stainless Steel Manifold with
    Powder Coated Steel enclosure
  • Plug-and-Play Plug-&-Play Pre-engineered, tested,
    and ready to connect.
Configurations Resources
Model Number Tamas Manifold Cabinet Panels with Thermostatic Mixing Valve
T-ZM-TV-0021 Zone Manifold Panel with (2) Loops, (1) Thermostatic Mixing Valve, (1) System Pump 0015e3 and Powder Coated Enclosure

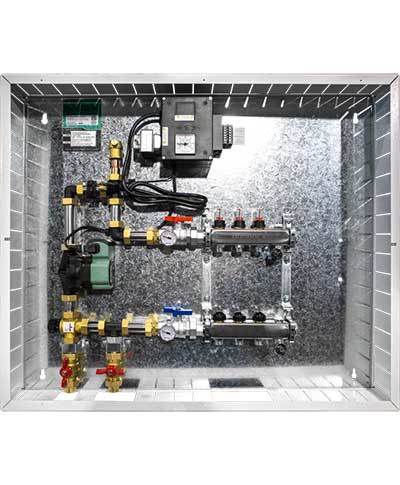

T-ZM-TV-0031 Zone Manifold Panel with (3) Loops, (1) Thermostatic Mixing Valve, (1) System Pump 0015e3 and Powder Coated Enclosure
T-ZM-TV-0041 Zone Manifold Panel with (4) Loops, (1) Thermostatic Mixing Valve, (1) System Pump 0015e3 and Powder Coated Enclosure
T-ZM-TV-0051 Zone Manifold Panel with (5) Loops, (1) Thermostatic Mixing Valve, (1) System Pump 0015e3 and Powder Coated Enclosure
T-ZM-TV-0061 Zone Manifold Panel with (6) Loops, (1) Thermostatic Mixing Valve, (1) System Pump 0015e3 and Powder Coated Enclosure
T-ZM-TV-0071 Zone Manifold Panel with (7) Loops, (1) Thermostatic Mixing Valve, (1) System Pump 0015e3 and Powder Coated Enclosure
T-ZM-TV-0081 Zone Manifold Panel with (8) Loops, (1) Thermostatic Mixing Valve, (1) System Pump 0015e3 and Powder Coated Enclosure
T-ZM-TV-00101 Zone Manifold Panel with (10) Loops, (1) Thermostatic Mixing Valve, (1) System Pump 0015e3 and Powder Coated Enclosure
T-ZM-TV-00121 Zone Manifold Panel with (12) Loops, (1) Thermostatic Mixing Valve, (1) System Pump 0015e3 and Powder Coated Enclosure
T-ZM-TV-0022 Zone Manifold Panel with (2) 1" Stainless Steel Manifold Loops, (1) TMV, (1) System Pump UPS 26-99 and Powder Coated Enclosure
T-ZM-TV-0032 Zone Manifold Panel with (3) 1" Stainless Steel Manifold Loops, (1) TMV, (1) System Pump UPS 26-99 and Powder Coated Enclosure
T-ZM-TV-0042 Zone Manifold Panel with (4) 1" Stainless Steel Manifold Loops, (1) TMV, (1) System Pump UPS 26-99 and Powder Coated Enclosure
T-ZM-TV-0052 Zone Manifold Panel with (5) 1" Stainless Steel Manifold Loops, (1) TMV, (1) System Pump UPS 26-99 and Powder Coated Enclosure
T-ZM-TV-0062 Zone Manifold Panel with (6) 1" Stainless Steel Manifold Loops, (1) TMV, (1) System Pump UPS 26-99 and Powder Coated Enclosure
T-ZM-TV-0072 Zone Manifold Panel with (7) 1" Stainless Steel Manifold Loops, (1) TMV, (1) System Pump UPS 26-99 and Powder Coated Enclosure
T-ZM-TV-0082 Zone Manifold Panel with (8) 1" Stainless Steel Manifold Loops, (1) TMV, (1) System Pump UPS 26-99 and Powder Coated Enclosure
T-ZM-TV-00102 Zone Manifold Panel with (10) 1" Stainless Steel Manifold Loops, (1) TMV, (1) System Pump UPS 26-99 and Powder Coated Enclosure
T-ZM-TV-00122 Zone Manifold Panel with (12) 1" Stainless Steel Manifold Loops, (1) TMV, (1) System Pump UPS 26-99 and Powder Coated Enclosure
