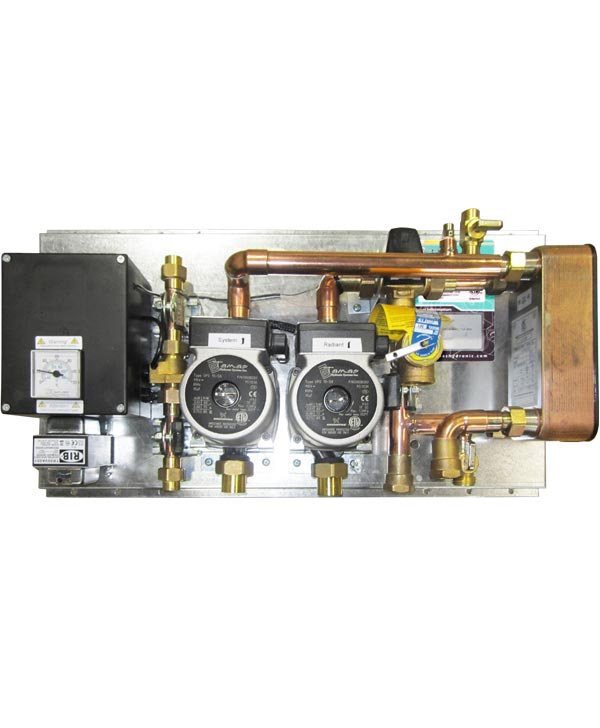

Tank-less Water Heater Panel T-BO-RF-1010 Model Shown

Tankless Water Heater Panel

  • Description
  • Specifications
  • Available Configurations
  • Resources

The Tank-less water heater panel is designed to be used in applications where domestic hot water (D.H.W.) and another load are present. (i.e. floor warming, fan coil). The panel is designed where isolation of water/ glycol mixtures is needed via a flat plate heat exchanger to isolate the domestic water from the load.

When the Tamas Tank-Less Water Heater Panel is connected to a tank-less water heater (instantaneous water heater) the panel regulates the water distribution and temperature to accommodate demand. If the room, or floor temperature falls below the users desired setting on a thermostat, the panel initiates a signal to the tank-less unit to turn on the primary pump and the zone pump. The two pumps will turn off once the demand temperature has been satisfied, or there has been a demand for D.H.W.

In the event that the tank-less unit is on for domestic hot water production, water flows through the flow switch on the Tamas panel to disengage the pumps to allow for the DHW priority. Once the hot water demand in the dwelling has been satisfied, and water stops flowing through the flow switch, and if there is still a zone demand present, the pumps on the Tamas panel will turn back on and continue heating the space that is calling for heat.

  • Dimensions

    Height: 12in (305mm)

    Width: 22in (560mm)

    Depth: 9in (229mm)

  • Flow

    Configuration Specific. See Resources.

  • Head

    Configuration Specific. See Resources.

  • Max. Temperature

    95°C / 203°

  • Max. Pressure

    3 Bar / 45 PSI

  • Enclosure

    Galvanized Steel Backpan with Powder Coated Steel

Model Number Tankless Water Heater Panels - Closed Loop, Low Temp
T-BO-RO-1010-HX Tankless Water Heater Panel with UPS 15-58 Pump, (1) Low Temp Zone with UPS 15-58 Pump and (1) Heat Exchanger
T-BO-RF-1010-HX Tankless Water Heater Panel with UPS 15-58 Pump, (1) Flow Switch, (1) Low Temp Zone UPS 15-58 Pump and (1) Heat Exchanger
T-BO-RO-1020-HX Tankless Water Heater Panel with UPS 15-58 Pump, (2) Low Temp Zone with UPS 15-58 Pump and (1) Heat Exchanger
T-BO-RF-1020-HX Tankless Water Heater Panel with UPS 15-58 Pump, (1) Flow Switch, (2) Low Temp Zone UPS 15-58 Pump and (1) Heat Exchanger
T-BO-RO-2010-HX Tankless Water Heater Panel with UPS 26-99 Pump, (1) Low Temp Zone with UPS 15-58 and (1) Heat Exchanger

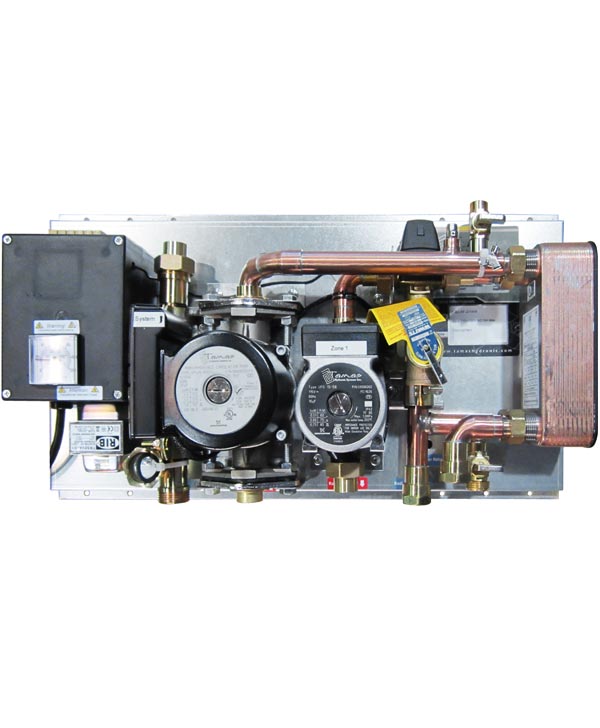

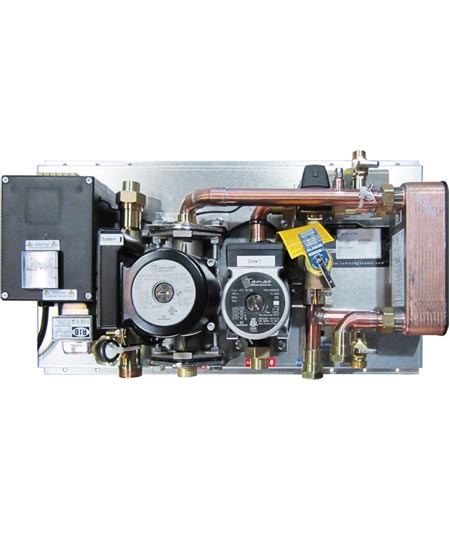

T-BO-RF-2010-HX Tankless Water Heater Panel with UPS 26-99 Pump, (1) Flow Switch, (1) Low Temp Zone with UPS 15-58 and (1) Heat Exchanger
T-BO-RF-2020-HX Tankless Water Heater with (1) 26-99 Boiler Pump, (2) 15-58 Low Temp Zones, (1) Heat Exchanger and (1) Flow Switch
Model Number Tankless Water Heater Panels-Open Loop, Low Temp
T-BO-RO-1010 Tankless Water Heater Panel with UPS 15-58 Pump and (1) Low Temp Zone with UPS 15-58 Pump
T-BO-RF-1010 Tankless Water Heater Panel with UPS 15-58 Pump, (1) Flow Switch and (1) Low Temp Zone with UPS 15-58 Pump
T-BO-RO-2010 Tankless Water Heater Panel with UPS 26-99 Pump and (1) Low Temp Zone with UPS 15-58 Pump
T-BO-RO-2010 Tankless Wate Heater Panel with UPS 26-99 Pump, (1) Flow Switch and (1) Low Temp Zone with UPS 15-58 Pump
T-BO-RO-2020 Tankless Wate Heater Panel with UPS 26-99 Pump, (1) Flow Switch and (2) Low Temp Zones with UPS 15-58 Pump

Features:


Literature

Manual
