T-BO-RF-1010HX-LT
Where to Buy

Tankless Water Heater Panel

Product Description

The Tankless water heater panel is designed to be used in applications where domestic hot water (D.H.W.) and another load are present. (i.e. floor warming, fan coil). The panel is designed where isolation of water/ glycol mixtures is needed via a flat plate heat exchanger to isolate the domestic water from the load.

When the Tamas Tank-Less Water Heater Panel is connected to a tank-less water heater (instantaneous water heater) the panel regulates the water distribution and temperature to accommodate demand. If the room, or floor temperature falls below the users desired setting on a thermostat, the panel initiates a signal to the tank-less unit to turn on the primary pump and the zone pump. The two pumps will turn off once the demand temperature has been satisfied, or there has been a demand for D.H.W.

In the event that the tank-less unit is on for domestic hot water production, water flows through the flow switch on the Tamas panel to disengage the pumps to allow for the DHW priority. Once the hot water demand in the dwelling has been satisfied, and water stops flowing through the flow switch, and if there is still a zone demand present, the pumps on the Tamas panel will turn back on and continue heating the space that is calling for heat.

Read More ▾

Features

  • Compact Design
  • Plug & Play design
  • Quick & easy installation; saves time & money
Configurations Resources
Model Number Tankless Water Heater Panels - Closed Loop, Low Temp
T-BO-RO-1010HX-LT Tankless Water Heater Panel with 0015e3 Pump, (1) Low Temp Zone with 0015e3 Pump and (1) Heat Exchanger

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 10 Bar / 145 PSI
  • Dimensions Height: 22in / 560mm
    Width: 26in / 662mm
    Depth: 12in / 305mm

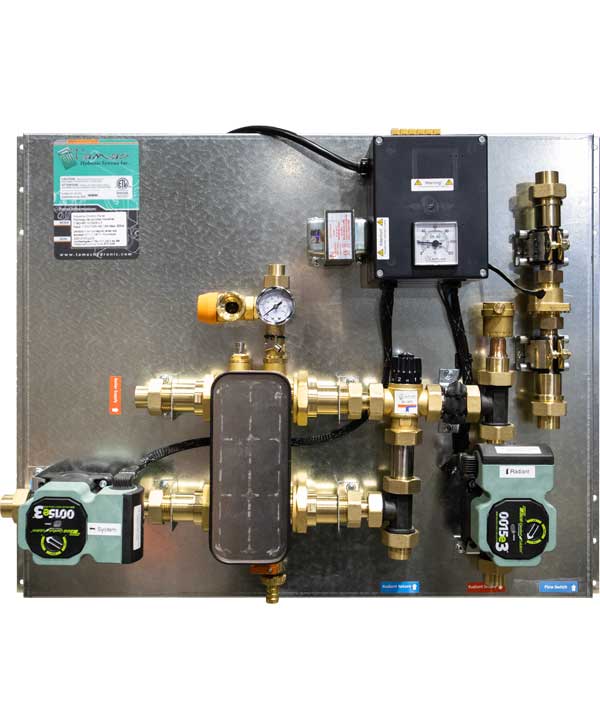

T-BO-RF-1010HX-LT
T-BO-RF-1010HX-LT
Tankless Water Heater Panel with 0015e3 Pump, (1) Flow Switch, (1) Low Temp Zone 0015e3 Pump and (1) Heat Exchanger

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 10 Bar / 145 PSI
  • Dimensions Height: 22in / 560mm
    Width: 26in / 662mm
    Depth: 12in / 305mm
T-BO-RO-1020HX-LT Tankless Water Heater Panel with 0015e3 Pump, (2) Low Temp Zone with 0015e3 Pump and (1) Heat Exchanger

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 10 Bar / 145 PSI
  • Dimensions Height: 22in / 560mm
    Width: 26in / 662mm
    Depth: 12in / 305mm
T-BO-RF-1020HX-LT Tankless Water Heater Panel with 0015e3 Pump, (1) Flow Switch, (2) Low Temp Zone 0015e3 Pump and (1) Heat Exchanger

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 10 Bar / 145 PSI
  • Dimensions Height: 22in / 560mm
    Width: 26in / 662mm
    Depth: 12in / 305mm
Model Number Tankless Water Heater Panels-Open Loop, Low Temp
T-BO-RO-1010-LT Tankless Water Heater Panel with 0015e3 Pump and (1) Low Temp Zone with 0015e3 Pump

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 10 Bar / 145 PSI
  • Dimensions Height: 22in / 560mm
    Width: 26in / 662mm
    Depth: 12in / 305mm
T-BO-RF-1010-LT Tankless Water Heater Panel with 0015e3 Pump, (1) Flow Switch and (1) Low Temp Zone with 0015e3 Pump

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 10 Bar / 145 PSI
  • Dimensions Height: 22in / 560mm
    Width: 26in / 662mm
    Depth: 12in / 305mm
