Snow Melt Mixing Series

Product Description

The Tamas Snow Melt Mixing Panel provides either a 3-Way mixing valve or 4-Way Mixing Valve, and System pump for the distribution of mixed water for each of the zones. Each panel comes complete with an HBX SNO-0600 Wifi Snow Melt Controller to monitor outdoor temperature and activate the system when needed.

Features

  • material Materials Stainless Steel Piping with
    Powder Coated Steel enclosure
  • control Snow Melt Controller HBX SNO-0600 Wifi
    Snow Melt Control Included.
  • Plug-and-Play Plug-&-Play Pre-engineered, tested,
    and ready to connect.
Configurations Resources
Model Number Tamas Snow Melt Manifold Cabinet Panels with Thermostatic Mixing Valve
T-SM-HBX-3V-26-99 Snow Melt Mixing Panel with (1) UPS 26-99 System Pump, (1) 3-Way Mixing Valve, (1) SNO-0600 Control, with Socket, Slab Sensor and WIFI Module

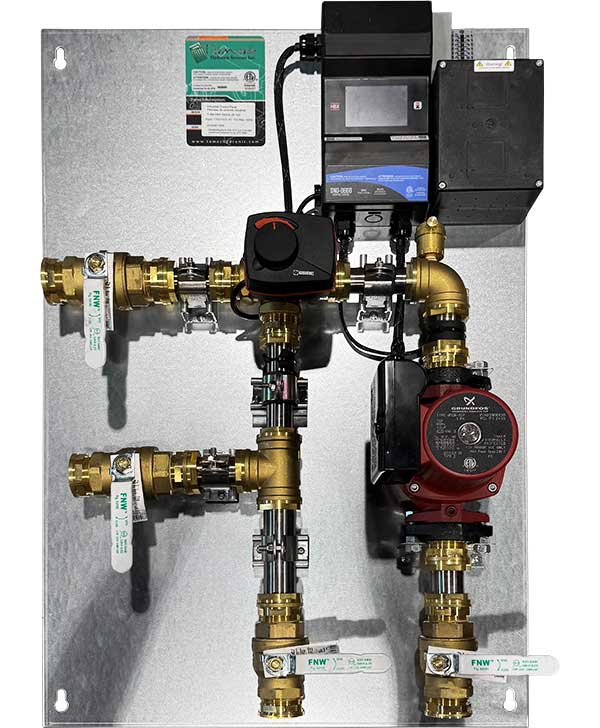

T-SM-HBX-3V-26-150 Snow Melt Mixing Panel with (1) UPS 26-150 System Pump, (1) 3-Way Mixing Valve, (1) SNO-0600 Control, with Socket, Slab Sensor and WIFI Module

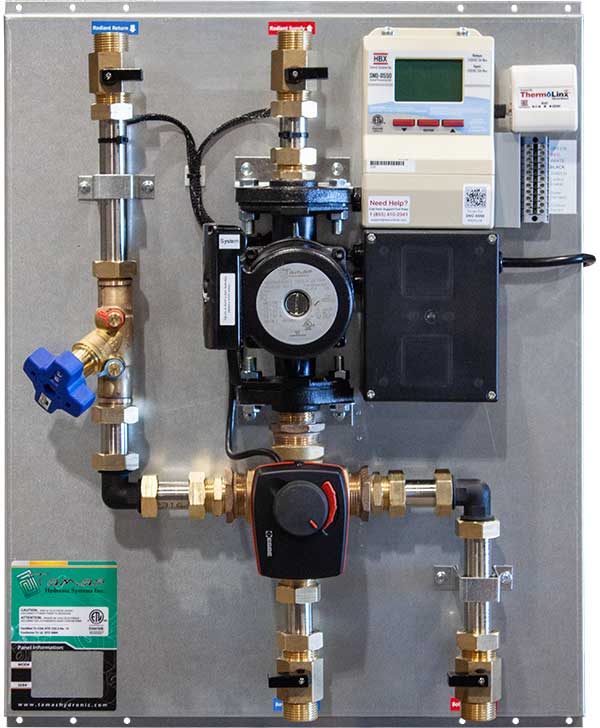

T-SM-HBX-4V-26-99 Snow Melt Mixing Panel with (1) UPS 26-99 System Pump, (1) 4-Way Mixing Valve, (1) SNO-0600 Control, with Socket, Slab Sensor and WIFI Module
T-SM-HBX-4V-26-150 Snow Melt Mixing Panel with (1) UPS 26-150 System Pump, (1) 4-Way Mixing Valve, (1) SNO-0600 Control, with Socket, Slab Sensor and WIFI Module
