Snow Melt Manifold Series

Product Description

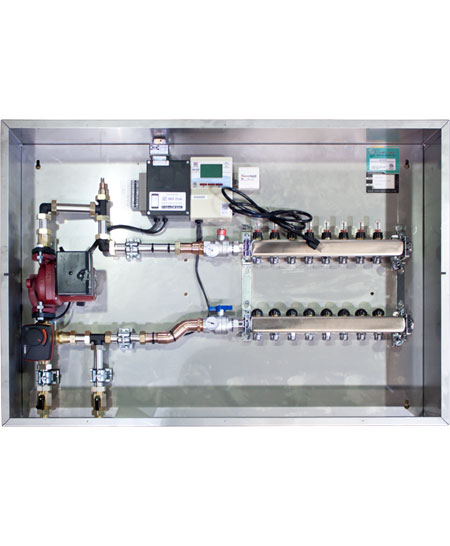

The Tamas Manifold Cabinet has been designed for distributing hydronic heat for radiant floor heating systems. The panel can be utilized for floor warming and area heating such as bathrooms, basements, kitchens, sunrooms and tiled floors.

The panel uses a stainless steel manifold to provide consistent heat distribution through the different zones. A thermostatic mixing valve and 3 speed circulating pumps function to temper and distribute the water to the system.

Features

  • Power Custom Zone Sizes 2-12 loops available to
    suit any application.
  • material Materials Stainless Steel Manifold with
    Powder Coated Steel enclosure
  • control Snow Melt Controller HBX SNO-0600 Wifi
    Snow Melt Control Included.
  • Plug-and-Play Plug-&-Play Pre-engineered, tested,
    and ready to connect.
Configurations Resources
Model Number Tamas Snow Melt Manifold Cabinet Panels with Thermostatic Mixing Valve
T-ZM-3V-0021-LSM (HBX) Zone Manifold Panel with (2) Loops, (1) 3 Way Mixing Valve, (1) System Pump 0015e3, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0031-LSM (HBX) Zone Manifold Panel with (3) Loops, (1) 3 Way Mixing Valve, (1) System Pump 0015e3, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0041-LSM (HBX) Zone Manifold Panel with (4) Loops, (1) 3 Way Mixing Valve, (1) System Pump 0015e3, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0051-LSM (HBX) Zone Manifold Panel with (5) Loops, (1) 3 Way Mixing Valve, (1) System Pump 0015e3, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0061-LSM (HBX) Zone Manifold Panel with (6) Loops, (1) 3 Way Mixing Valve, (1) System Pump 0015e3, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0071-LSM (HBX) Zone Manifold Panel with (7) Loops, (1) 3 Way Mixing Valve, (1) System Pump 0015e3, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0081-LSM (HBX) Zone Manifold Panel with (8) Loops, (1) 3 Way Mixing Valve, (1) System Pump 0015e3, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0091-LSM (HBX) Zone Manifold Panel with (9) Loops, (1) 3 Way Mixing Valve, (1) System Pump 0015e3, HBX SNO-0600 Control and Powder Coated Enclosure

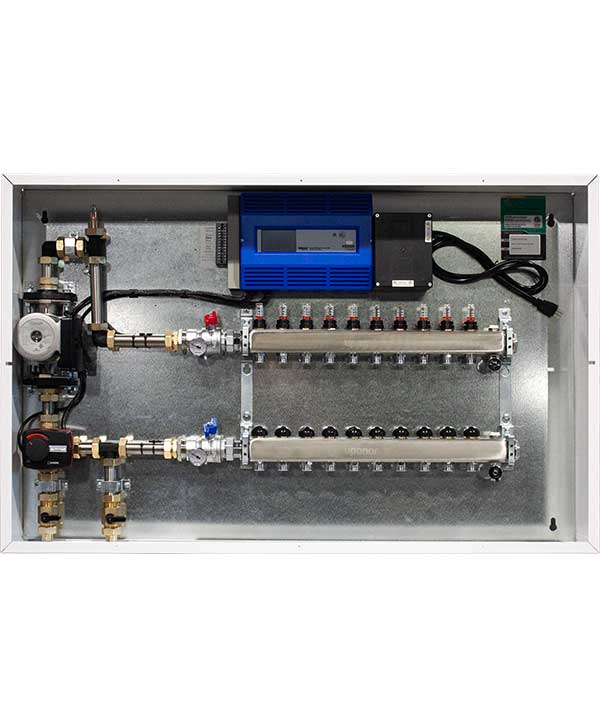

T-ZM-3V-00101-LSM (HBX) Zone Manifold Panel with (10) Loops, (1) 3 Way Mixing Valve, (1) System Pump 0015e3, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-00121-LSM (HBX) Zone Manifold Panel with (12) Loops, (1) 3 Way Mixing Valve, (1) System Pump 0015e3, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0022-LSM (HBX) Zone Manifold Panel with (2) Loops, (1) 3 Way Mixing Valve, (1) System Pump UPS 26-99, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0032-LSM (HBX) Zone Manifold Panel with (3) Loops, (1) 3 Way Mixing Valve, (1) System Pump UPS 26-99, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0042-LSM (HBX) Zone Manifold Panel with (4) Loops, (1) 3 Way Mixing Valve, (1) System Pump UPS 26-99, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0052-LSM (HBX) Zone Manifold Panel with (5) Loops, (1) 3 Way Mixing Valve, (1) System Pump UPS 26-99, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0062-LSM (HBX) Zone Manifold Panel with (6) Loops, (1) 3 Way Mixing Valve, (1) System Pump UPS 26-99, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0072-LSM (HBX) Zone Manifold Panel with (7) Loops, (1) 3 Way Mixing Valve, (1) System Pump UPS 26-99, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0082-LSM (HBX) Zone Manifold Panel with (8) Loops, (1) 3 Way Mixing Valve, (1) System Pump UPS 26-99, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-0092-LSM (HBX) Zone Manifold Panel with (9) Loops, (1) 3 Way Mixing Valve, (1) System Pump UPS 26-99, HBX SNO-0600 Control and Powder Coated Enclosure

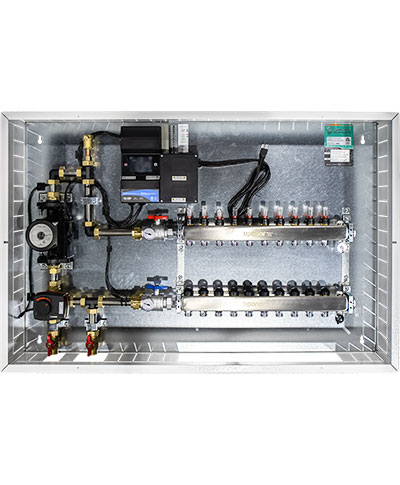

T-ZM-3V-00102-LSM (HBX)
T-ZM-3V-00102-LSM (HBX)
Zone Manifold Panel with (10) Loops, (1) 3 Way Mixing Valve, (1) System Pump UPS 26-99, HBX SNO-0600 Control and Powder Coated Enclosure
T-ZM-3V-00122-LSM (HBX) Zone Manifold Panel with (12) Loops, (1) 3 Way Mixing Valve, (1) System Pump UPS 26-99, HBX SNO-0600 Control and Powder Coated Enclosure
