Navian Boiler Panel
Where to Buy

Navian Boiler Panel

Product Description

The Tamas Navian Series Boiler Panel line offers flexible panel configurations designed to pair directly with the Navian boiler series. Each panel helps manage and balance system flow to meet heating demand, supporting reliable performance across a range of building sizes and load conditions.

Optional secondary injection mixing components can be added for systems requiring both high- and low-temperature distribution. Panels can be configured to support up to four heating zones, with expandable designs available for larger applications as needed.

Read More ▾

Features

  • dhw DHW Priority Domestic Hot Water option
  • material Materials Polished Copper Pipe with
    Powder Coated Steel enclosure
  • temp Connections Connects directly to the boiler
Configurations Resources
Model Number Navian Boiler Panels

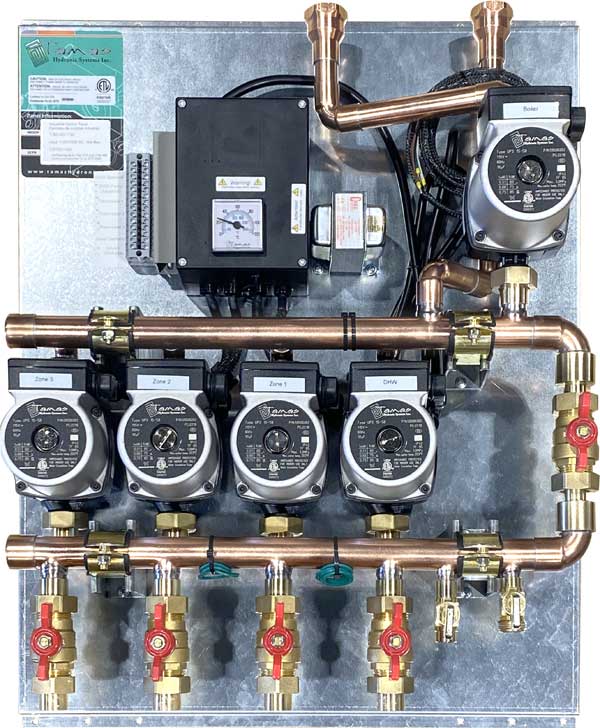

T-BO-ND-1130
T-BO-ND-1130
Navian Boiler Panel with (3) Low Temperature Zone pumps, (1) High Temperature Zone pumps, and (1) Boiler Pump

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
