Low Temperature Panel
Where to Buy

Low Temperature Panel

Product Description

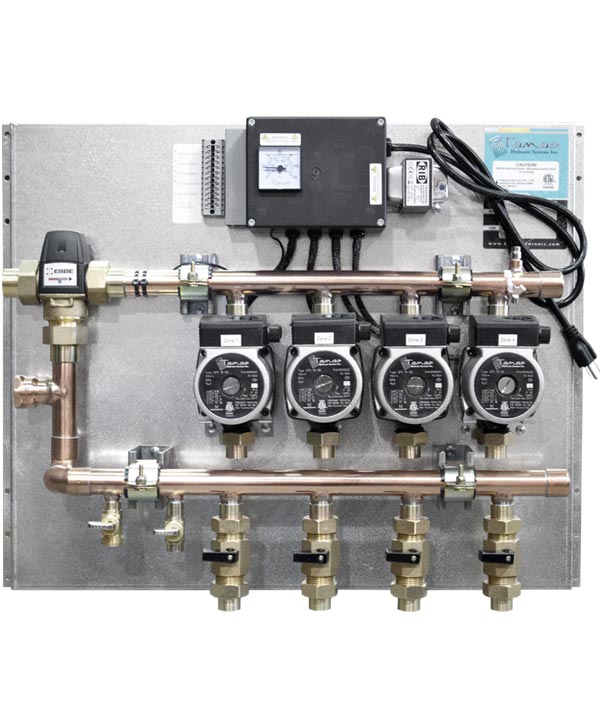

Tamas Low Temperature hydronic panels provide reliable distribution for radiant floor heating applications. Each system is equipped with a fully wired hydronic control that receives demand from the building's thermostat, ensuring consistent and even heat delivery throughout the system.

Panels requiring three zones or more are built on a copper panel assembly and include an expanded back pan to accommodate the increased component spacing. Thermostatic mixing valves and three-speed circulating pumps manage water temperature and flow for stable, efficient operation.

Stainless Steel configurations are also available for systems with 1 - 3 zones.

Read More ▾

Features

  • Convenient Plug-and-Play Design
  • Fully Wired
Configurations Resources
Model Number Low Temperature Panels
T-LO-TP-0040
T-LO-TP-0040
Low temp Panel with (1) TMV and (4) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-LO-TP-0050 Low temp Panel with (1) TMV and (5) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
