Low Temp Isolation Panel

Product Description

The Tamas Isolation panel is designed to be used in applications where isolation of water/glycol mixtures is needed. (Or for poly B applications) When a Tamas Isolation Panel is connected to a hot water tank system the panel regulates the water distribution and temperature to accommodate demand.

Features

• DHW Priority Domestic Hot Water option
• Materials Polished Copper Pipe with

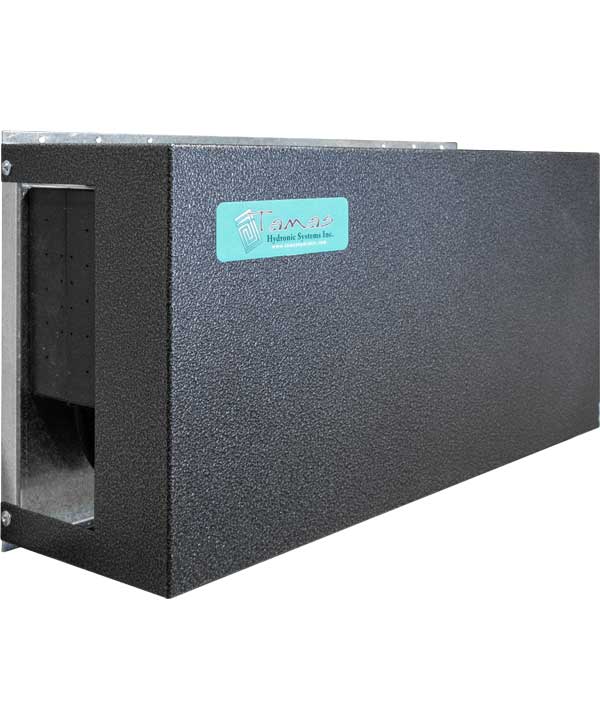

  Powder Coated Steel enclosure
• Compatibility Adaptable to almost all
  hot water tank systems

Model Number	Isolation Panel w/ Heat Exchanger, Low Temperature

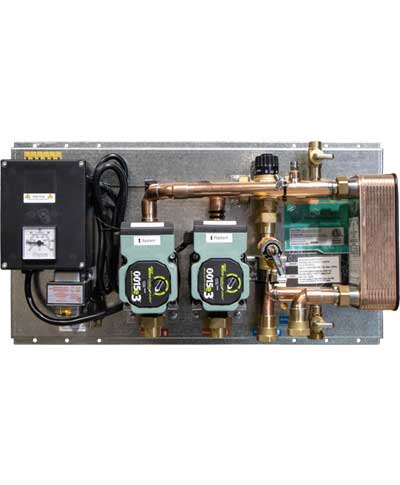

T-LO-TP-HX10	Low Temp Isolation Panel with (1) Heat Exchanger and (1) Low Temp Zone Specifications Max. Temperature 110°C / 230°F Max. Pressure 3 bar / 43.5 PSI Dimensions Height: 12in / 305mm Width: 22in / 560mm Depth: 8.7in / 221mm

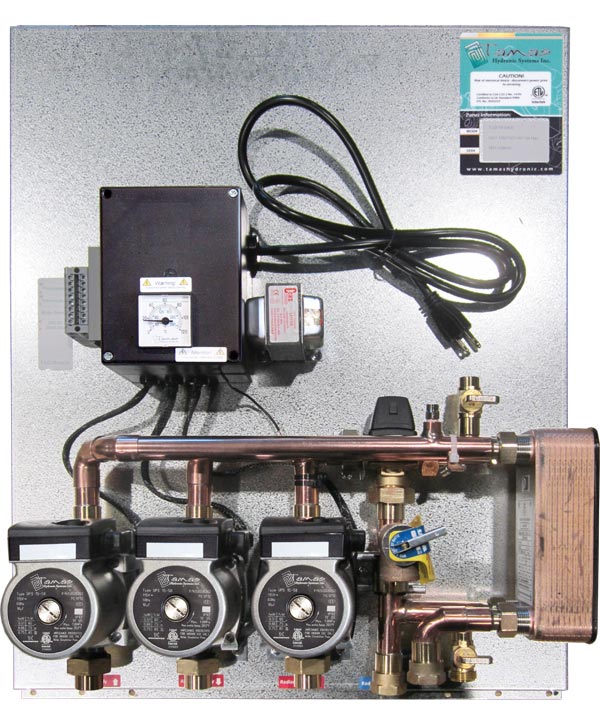

T-LO-TP-HX20	Low Temp Isolation Panel with (1) Heat Exchanger and (2) Low Temp Zones Specifications Max. Temperature 110°C / 230°F Max. Pressure 3 bar / 43.5 PSI Dimensions Height: 26in / 662mm Width: 22in / 560mm Depth: 12in / 305mm

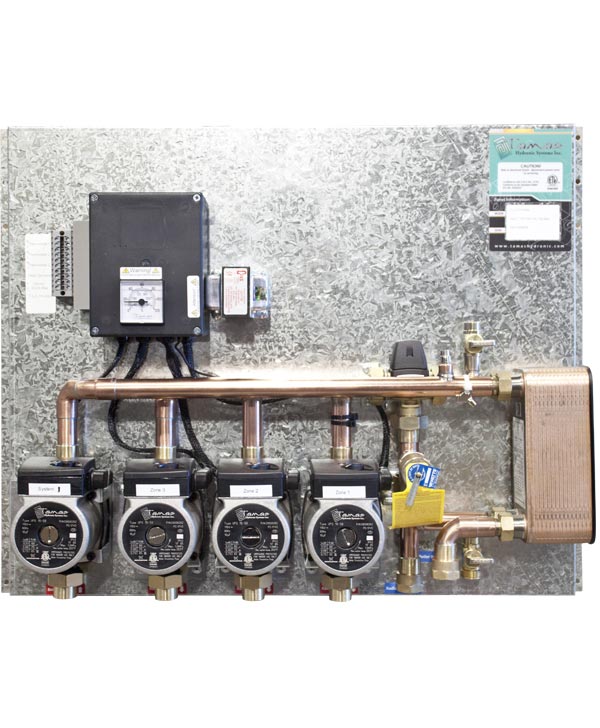

T-LO-TP-HX30	Low Temp Isolation Panel with (1) Heat Exchanger and (3) Low Temp Zones Specifications Max. Temperature 110°C / 230°F Max. Pressure 3 bar / 43.5 PSI Dimensions Height: 22in / 560mm Width: 26in / 662mm Depth: 12in / 305mm

Note: Heat Exhanger sizes will vary depending on Flow, and BTU's for each application.
