Brass Low Temp Isolation Panel

Product Description

The Tamas Brass Isolation Panel is designed for systems where water/glycol separation is required, ideal for applications involving mixed-media loops or legacy Poly-B piping. The panel provides reliable system isolation while ensuring proper water flow and temperature regulation to the controlled zones.

When installed within a boiler system, the Isolation Panel responds to a call for heat from a thermostat (sold separately). Upon demand, the panel signals the boiler to enable heat production and simultaneously activates the System and Zone pumps on the panel. Once the thermostat is satisfied, the call for heat is removed, and the panel deactivates its pumps. Boiler-side post-purge functions continue as required by the boiler manufacturer, while the panel remains in standby.

For applications using an existing domestic hot water tank as the heat source, boiler-demand control is not necessary. The thermostat connects directly to the panel's low-voltage terminal strip, allowing the panel to operate the pumps on temperature demand without interacting with a boiler control circuit.

Read More ▾

Features

  • dhw DHW Priority Domestic Hot Water option
  • material Materials Stainless Steel Piping
    with Brass Fittings
  • time Quick Install Pre-packaged System;
    Saves Time on Site
Configurations Resources
Model Number Brass Isolation Panel w/ Heat Exchanger, Low Temperature

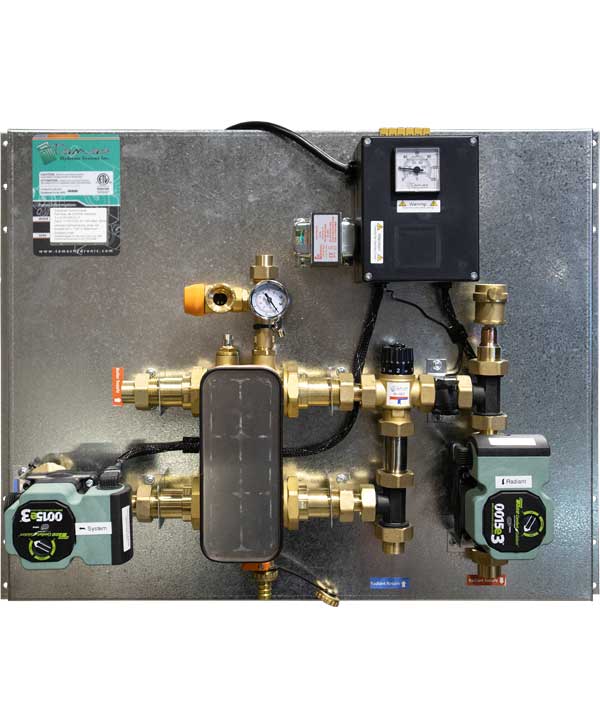

T-LO-TP-HX10-LT
T-LO-TP-HX10-LT
Low Temp Isolation Panel with (1) Heat Exchanger and (1) Low Temp Zone

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 Bar / 43.5 PSI
  • Dimensions Height: 22in / 560mm
    Width: 26in / 662mm
    Depth: 12in / 305mm

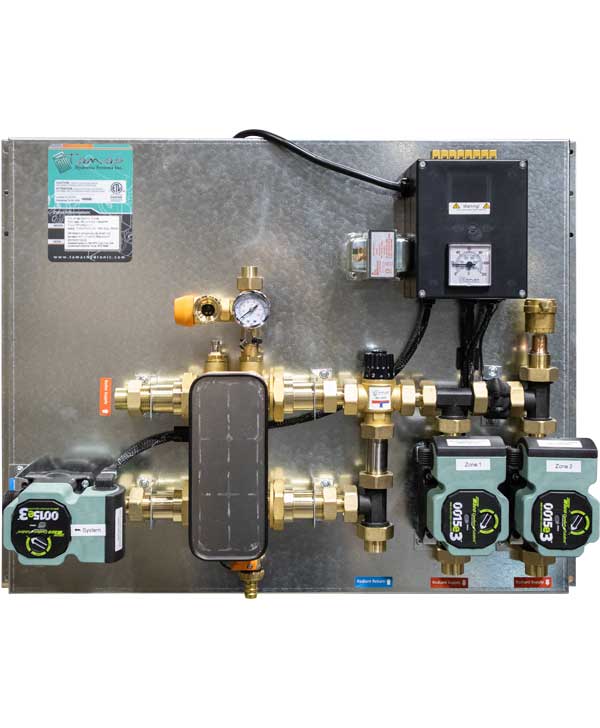

T-LO-TP-HX20-LT
T-LO-TP-HX20-LT
Low Temp Isolation Panel with (1) Heat Exchanger and (2) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 Bar / 43.5 PSI
  • Dimensions Height: 22in / 560mm
    Width: 26in / 662mm
    Depth: 12in / 305mm

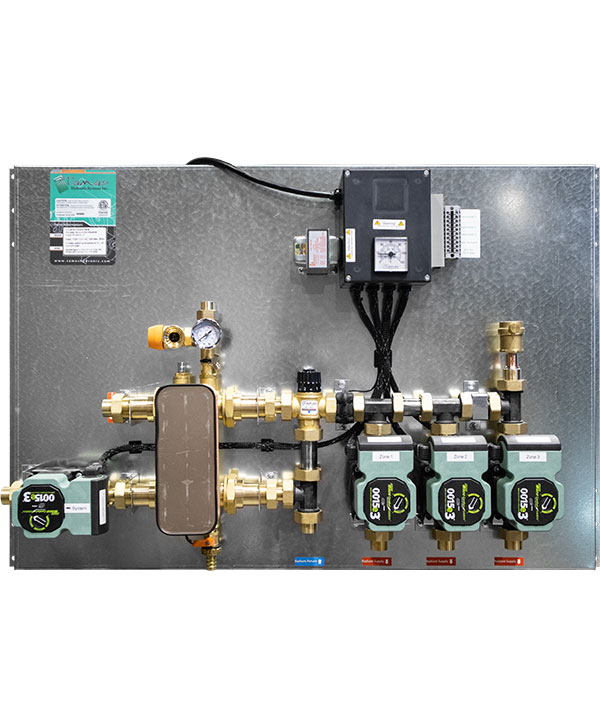

T-LO-TP-HX30-LT
T-LO-TP-HX30-LT
Low Temp Isolation Panel with (1) Heat Exchanger and (3) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 Bar / 43.5 PSI
  • Dimensions Height: 24in / 609mm
    Width: 36in / 914mm
    Depth: 12in / 305mm
T-LO-TP-HX40-LT Low Temp Isolation Panel with (1) Heat Exchanger and (4) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 Bar / 43.5 PSI
  • Dimensions Height: 24in / 609mm
    Width: 36in / 914mm
    Depth: 12in / 305mm

Note: Heat Exhanger sizes will vary depending on Flow, and BTU's for each application.
