Low Loss Header Panel
Where to Buy

Large Low Loss Header Panel

Product Description

The Tamas Large Low Loss Header Panel provides efficient hydraulic separation and simplified installation for a wide range of hydronic heating applications. Featuring a stainless steel low loss header, each panel maintains proper flow between the primary and secondary circuits, reducing pump conflict, system noise, and temperature fluctuations.

Designed with a compact footprint and straightforward connections, the panel helps reduce on-site labor and installation time. Optional Domestic Hot Water (DHW) priority ensures hot water demand is met first, while modular configurations allow easy expansion for larger systems requiring six or more zones.

Built for performance, flexibility, and durability, the Tamas Large Low Loss Header Panel offers a reliable solution for achieving balanced, energy-efficient operation in both new and retrofit systems.

Read More ▾

Features

  • dhw DHW Priority Domestic Hot Water option
  • material Materials Stainless Steel Design
  • time Quick Install Pre-packaged System;
    Saves Time on Site
Configurations Resources
Model Number Low Loss Header Panels
T-LL-00-4102
T-LL-00-4102

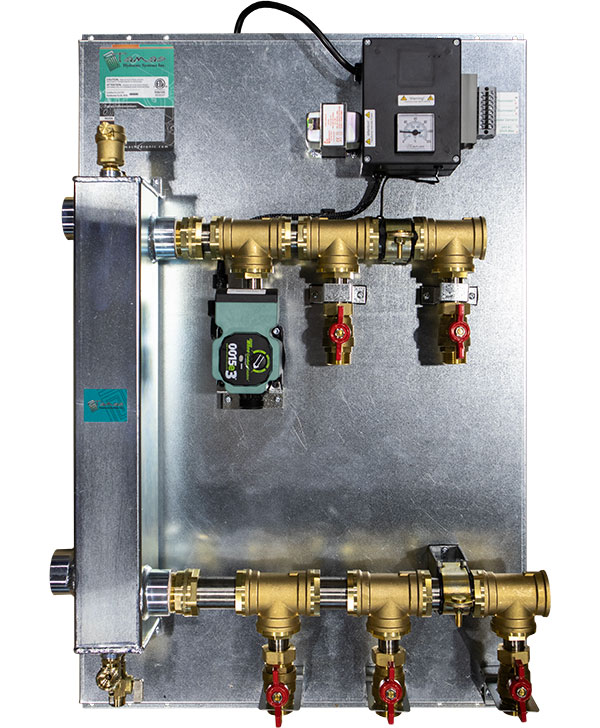

Large Low Loss Header Panel with 1 0015e3 Zone Pump and 2 take-offs

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI

For more information about the Large Low Loss Header Panel, please contact us.
