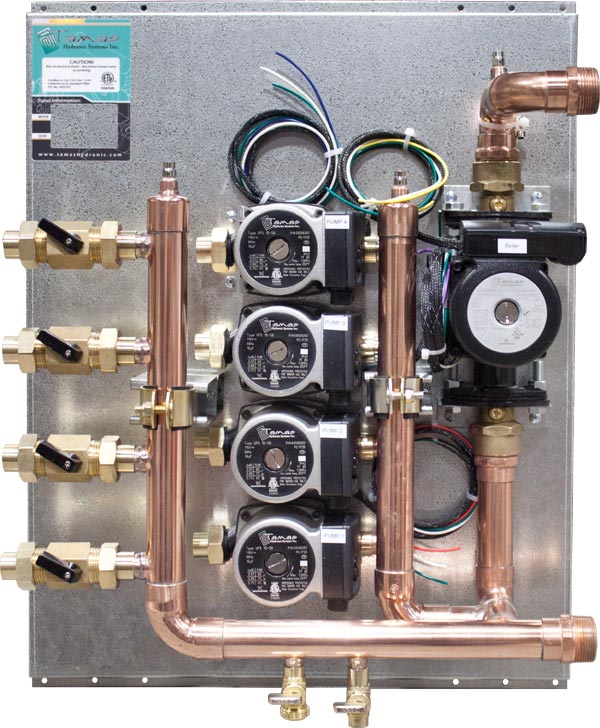

IBC Boiler Panel T-BO-IB-1400-R
Where to buy

IBC Boiler Panel

Product Description

The Tamas IBC Boiler Panel product line contains a series of expandable panels suited for a variety of applications and building sizes using the IBC Boiler Series.

IBC-SL Boiler Panel

The IBC SL Boiler panel has been configured as a primary/secondary system. The panel is designed to directly hook up to the boiler on the right or left side depending on customer's requirements. Wiring on the panel is controlled by the boiler up to four zones, after that the pumps are controlled by the Tamas panel wiring.

IBC SL 199 Boiler Panel

The IBC SL Boiler panel has been configured as a primary/secondary system. The panel is designed to directly hook up to the boiler on the right or left side depending on customer's requirements. Wiring on the panel is controlled by the boiler up to four zones, after that the pumps are controlled by the Tamas panel.

Read More ▾

Features

  • dhw DHW Priority Domestic Hot Water option
  • material Materials Polished Copper Pipe with
    Powder Coated Steel enclosure
  • temp Connections Connects directly to the boiler
Configurations Resources
Model Number I.B.C. Boiler Panels - SL 20-115 / SL 28-160 Models (Left Side Connection)
T-BO-IB-1101-L SL 115/160 Panel with (1) High Temp Zone, (1) Take Off and Left Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1100-L SL 115/160 Panel with (1) High Temp Zone, and Left Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1201-L SL 115/160 Panel with (2) High Temp Zones, (1) Take Off and Left Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1200-L SL 115/160 Panel with (2) High Temp Zones, and Left Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1301-L SL 115/160 Panel with (3) High Temp Zones, (1) Take Off and Left Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1300-L SL 115/160 Panel with (3) High Temp Zones, and Left Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1400-L SL 115/160 Panel with (4) High Temp Zones, and Left Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
Model Number I.B.C. Boiler Panels - SL 20-115 / SL 28-160 Models (Right Side Connection)
T-BO-IB-1101-R SL 115/160 Panel with (1) High Temp Zone, (1) Take Off and Right Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1100-R SL 115/160 Panel with (1) High Temp Zone, and Right Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1201-R SL 115/160 Panel with (2) High Temp Zones, (1) Take Off and Right Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1200-R SL 115/160 Panel with (2) High Temp Zones, and Right Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1301-R SL 115/160 Panel with (3) High Temp Zones, (1) Take Off and Right Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1300-R SL 115/160 Panel with (3) High Temp Zones, (1) Take Off and Right Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm

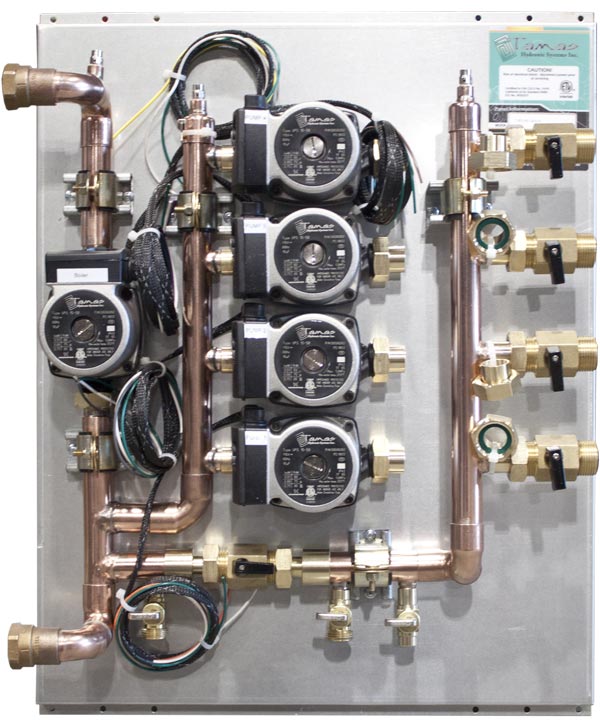

T-BO-IB-1400-R
T-BO-IB-1400-R
SL 115/160 Panel with (4) High Temp Zones and Right Side Connection of the Boiler

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
Model Number I.B.C Boiler Panels - SL 30-199 Models
T-BO-IB-2100 199 SL 199 with (1) 26-99 Boiler Pump and (1) High Temp zone

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-2101 199 SL 199 with (1) 26-99 Boiler Pump and (1) High Temp zone and (1) Take Off

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-2201 199 SL 199 with (1) 26-99 Boiler Pump and (2) High Temp zone and (1) Take Off

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-2301 199 SL 199 with (1) 26-99 Boiler Pump and (3) High Temp zone and (1) Take Off

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-2400 199 SL 199 with (1) 26-99 Boiler Pump and (4) High Temp zone

Technical Documentation

Wiring Diagram One Sheet

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
