IBC Boiler Panel
Where to Buy

IBC HC Boiler Panel

Product Description

IBC-SL Boiler Panel

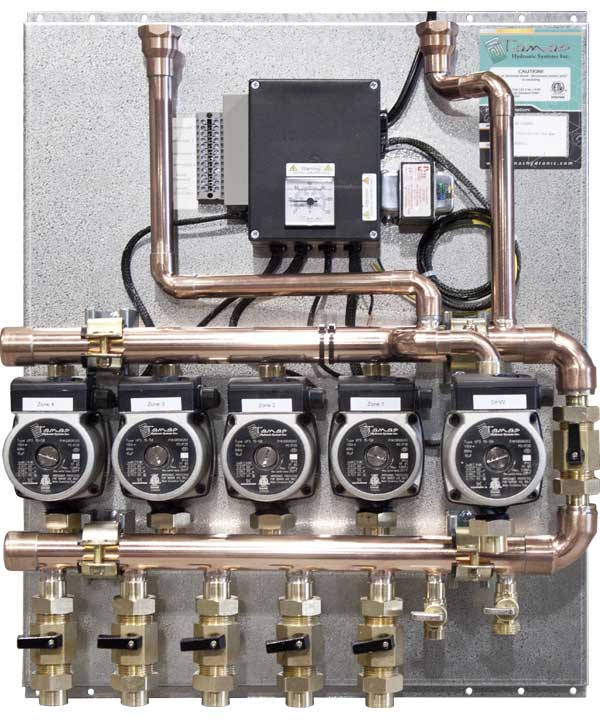

The IBC HC Series boiler panel is designed to match the HC boilers supply/return connections, making installation quick and easy. A fully wired panel controlled by the Tamas control box, a complete plug and play design that is function & pressure tested.

Features

  • dhw DHW Priority Domestic Hot Water option
  • material Materials Polished Copper Pipe with
    Powder Coated Steel enclosure
  • temp Connections Connects directly to the boiler
Configurations Resources
Model Number I.B.C. HC Series Boiler Panels
T-BO-IB-1110 HC IBC HC Series Panel with (1) DHW Zone with Priority and (1) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1120 HC IBC HC Series Panel with (1) DHW Zone with Priority and (2) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1130 HC IBC HC Series Panel with (1) DHW Zone with Priority and (3) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1140 HC IBC HC Series Panel with (1) DHW Zone with Priority and (4) Low Temp Zones

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1210 HC IBC HC Series Panel with (1) DHW Zone with Priority, (1) High Temp Zone and (1) Low Temp Zone (TMV)

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
T-BO-IB-1220 HC IBC HC Series Panel with (1) DHW Zone with Priority, (1) High Temp Zone and (2) Low Temp Zone (TMV)

Specifications

  • Max. Temperature 90°C / 194°F
  • Max. Pressure 3 bar / 43.5 PSI
  • Dimensions Height: 26in / 662mm
    Width: 22in / 560mm
    Depth: 12in / 305mm
