Brass High Temperature Isolation Panel

Product Description

The Tamas Isolation panel is designed to be used in applications where isolation of water/glycol mixtures is needed. (Or for poly B applications) When a Tamas Isolation Panel is connected to a hot water tank system the panel regulates the water distribution and temperature to accommodate demand.

Features

• Compatibility Adaptable to almost all
  hot water tank systems
• Materials Stainless Steel Piping
  with Brass Fittings
• Quick Install Pre-packaged System;
  Saves Time on Site

Model Number	Isolation Panel w/ Heat Exchanger, High Temperature

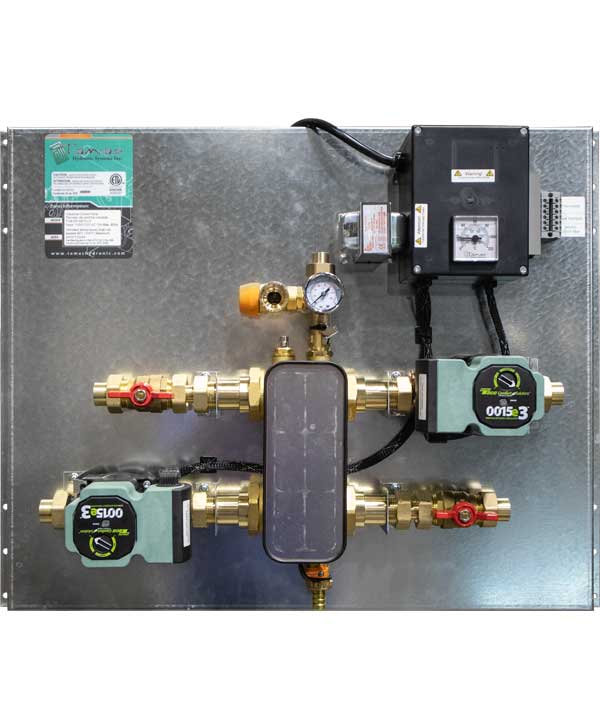

T-HI-0P-HX10-LT	High Temp Isolation Panel with (1) Heat Exchanger and (1) High Temp Zone Specifications Max. Temperature 90°C / 194°F Max. Pressure 3 bar / 43.5 PSI Dimensions Height: 22in / 560mm Width: 26in / 662mm Depth: 12in / 305mm
T-HI-0P-HX20-LT	High Temp Isolation Panel with (1) Heat Exchanger and (2) High Temp Zones Specifications Max. Temperature 90°C / 194°F Max. Pressure 3 bar / 43.5 PSI Dimensions Height: 22in / 560mm Width: 26in / 662mm Depth: 12in / 305mm
T-HI-0P-HX30-LT	High Temp Isolation Panel with (1) Heat Exchanger and (3) High Temp Zones Specifications Max. Temperature 90°C / 194°F Max. Pressure 3 bar / 43.5 PSI Dimensions Height: 22in / 560mm Width: 26in / 662mm Depth: 12in / 305mm

Note: Heat Exhanger sizes will vary depending on Flow, and BTU's for each application.
