Bosch Boiler Panel
Product Description

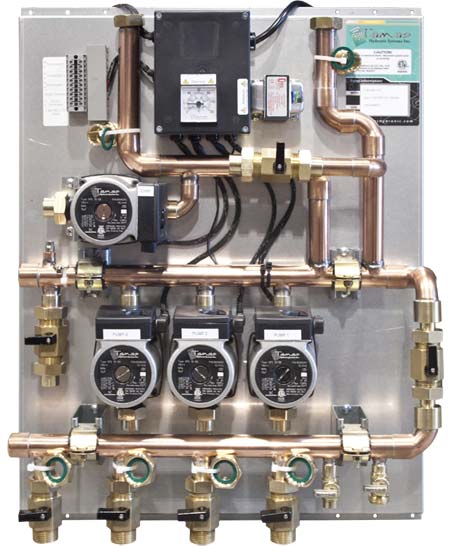

The Tamas Bosch Greenstar Boiler Panel is engineered to mount directly beneath the Greenstar boiler, streamlining installation with aligned supply and return connections. Each panel arrives fully wired, pressure-tested, and function-tested to help ensure a reliable and clean startup on site.
Configurations are available for both new installations and retrofit applications, with flexible options to meet a range of heating system layouts. Domestic Hot Water (DHW) priority is also available, allowing the system to automatically shift focus to hot water production when needed.
Features
-
DHW Priority
Domestic Hot Water option
-
Materials
Polished Copper Pipe withPowder Coated Steel enclosure
-
Connections
Connects directly to the boiler
Configurations
Resources
| Model Number | Bosch Greenstar ZBR Panels |
| T-BO-BD-1111 | ZBR Panel with (1) DHW Zone with Priority, (1) Low Temp Zone and (1) Take Off
Specifications
|
| T-BO-BD-1121 | ZBR Panel with (1) DHW Zone with Priority, (2) Low Temp Zones and (1) Take Off
Specifications
|
| T-BO-BD-1131 | ZBR Panel with (1) DHW Zone with Priority, (3) Low Temp Zones and (1) Take Off
Specifications
|
| T-BO-BD-1140 | ZBR Panel with (1) DHW Zone with Priority and (4) Low Temp Zones
Specifications
|
| T-BO-BD-1210 | ZBR Panel with (1) DHW Zone with Priority, (1) Hi Temp Zone and (1) Low Temp Zone
Specifications
|
| T-BO-BD-1220 | ZBR Panel with (1) DHW Zone with Priority, (1) Hi Temp Zone and (2) Low Temp Zones
Specifications
|
| T-BO-BD-1230 | ZBR Panel with (1) DHW Zone with Priority, (1) Hi Temp Zone and (3) Low Temp Zones
Specifications
|
| T-BO-BD-1310 | ZBR Panel with (1) DHW Zone with Priority, (2) Hi Temp Zones and (1) Low Temp Zone
Specifications
|
| T-BO-BD-1320 | ZBR Panel with (1) DHW Zone with Priority, (2) Hi Temp Zones and (2) Low Temp Zones
Specifications
|
