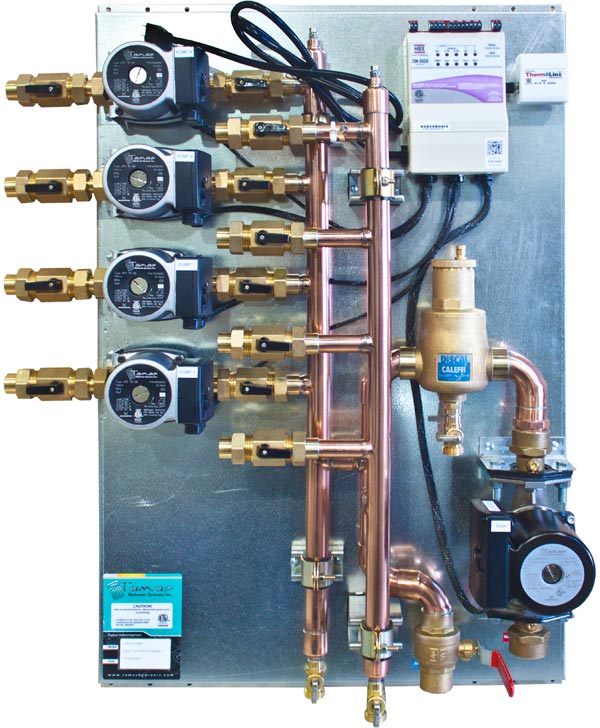

Air Eliminator Boiler Panel

Product Description

The Tamas Air Eliminator Panel is specifically designed to accommodate multiple temperature applications in the same system, up to a maximum of 6 zones of hydronic heating. This versatile panel can also be used with a dedicated condensing boiler. The 3-speed pumps used will accommodate the flow requirements for most warm and hot water requirements. A DHW priority configuration is also an option for this panel. With a compact design the panel allows for a great option for retrofit or new installs. With many configurations available the Air Eliminator panel is one of the most versatile products offered.

Features

  • dhw DHW Priority Domestic Hot Water option
  • material Materials Polished Copper Pipe with
    Powder Coated Steel enclosure
  • temp Connections Compatible with Most
    Dedicated Condensing Boilers
Configurations Resources
Model Number Air Eliminator Panels
T-BO-OD-1200 Air Eliminator Boiler Panel with (1) 15-58 Boiler Pump, (2) 15-58 Zone Pumps, (1) Air Separator and White Enclosure
T-BO-OD-1300 Air Eliminator Boiler Panel with (1) 15-58 Boiler Pump, (3) 15-58 Zone Pumps, (1) Air Separator and White Enclosure

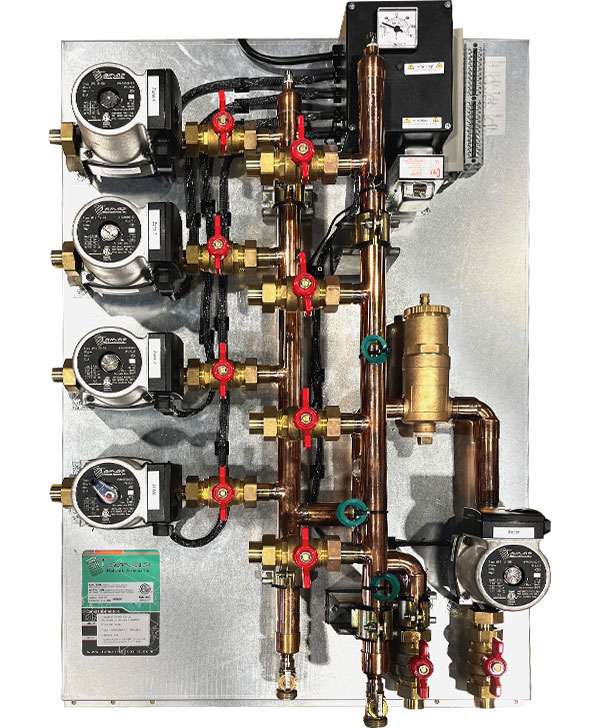

T-BO-OD-1400 Air Eliminator Boiler Panel with (1) 15-58 Boiler Pump, (4) 15-58 Zone Pumps, (1) Air Separator and White Enclosure
T-BO-OD-1500 Air Eliminator Boiler Panel with (1) 15-58 Boiler Pump, (5) 15-58 Zone Pumps, (1) Air Separator and White Enclosure
T-BO-OD-1600 Air Eliminator Boiler Panel with (1) 15-58 Boiler Pump, (6) 15-58 Zone Pumps, (1) Air Separator and White Enclosure
T-BO-OD-2200 Air Eliminator Boiler Panel with (1) 26-99 Boiler Pump, (2) 15-58 Zone Pumps, (1) Air Separator and White Enclosure
T-BO-OD-2300 Air Eliminator Boiler Panel with (1) 26-99 Boiler Pump, (3) 15-58 Zone Pumps, (1) Air Separator and White Enclosure
T-BO-OD-2400 Air Eliminator Boiler Panel with (1) 26-99 Boiler Pump, (4) 15-58 Zone Pumps, (1) Air Separator and White Enclosure
T-BO-OD-2500 Air Eliminator Boiler Panel with (1) 26-99 Boiler Pump, (5) 15-58 Zone Pumps, (1) Air Separator and White Enclosure
T-BO-OD-2600 Air Eliminator Boiler Panel with (1) 26-99 Boiler Pump, (6) 15-58 Zone Pumps, (1) Air Separator and White Enclosure
