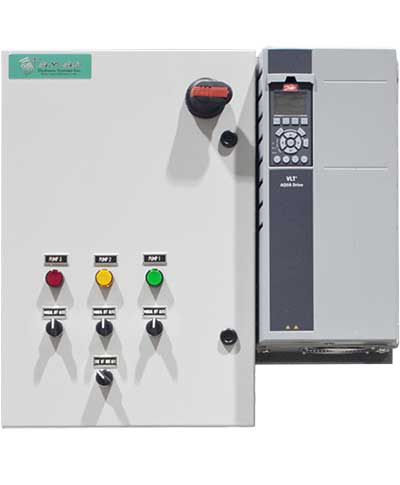

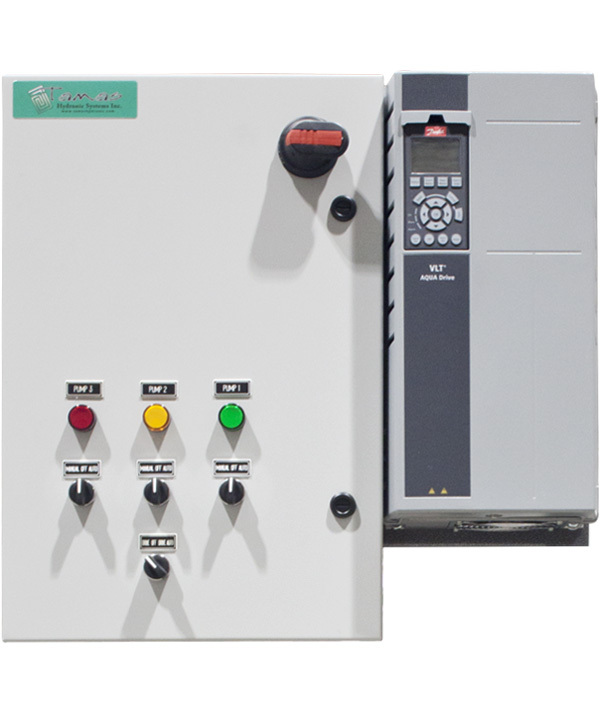

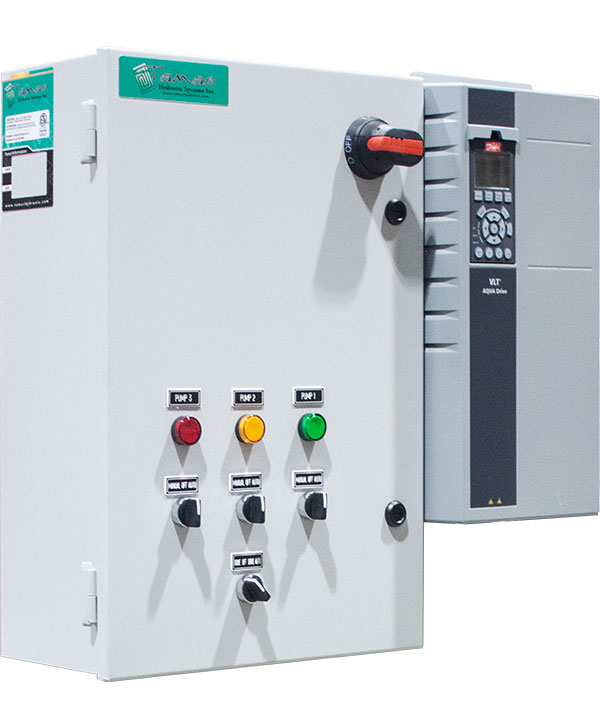

VFD Control Package

Variable Frequency Drive Control Package

  • Description
  • Specifications
  • Available Configurations
  • Resources

The addition of variable frequency drives and application specific controls can increase system efficiency, reduce equipment depreciation, and minimize maintenance costs in large scale boiler operations.

Adjustable variable frequency drives offer the ability to modulate flow rate and speed by sensing the differential pressure or temperature within the system. Distribution is regulated to meet the minimum output requirements to satisfy the system load. Tamas VFDs can provide between 1/2 and 300 horsepower while controlling up to 5 pumps.

  • Dimensions

    Custom dimensions apply to this product

  • Flow

    Configuration Specific. See Resources.

  • Head

    Configuration Specific. See Resources.

  • Max. Temperature

    95°C / 203°

  • Max. Pressure

    3 Bar / 45 PSI

  • Enclosure

    Galvanized Steel Backpan with Powder Coated Steel

Model Number Variable Frequency Drive 208V Models
T-CP-2VLT3C208 3 Phase Variable Frequency Drive, (2) Horse Power, 208 Voltage
T-CP-3VLT3C208 3 Phase Variable Frequency Drive, (3) Horse Power, 208 Voltage
T-CP-4VLT3C208 3 Phase Variable Frequency Drive, (4) Horse Power, 208 Voltage
T-CP-5VLT3C208 3 Phase Variable Frequency Drive, (5) Horse Power, 208 Voltage
T-CP-7.5VLT3C208 3 Phase Variable Frequency Drive, (7.5) Horse Power, 208 Voltage
T-CP-10VLT3C208 3 Phase Variable Frequency Drive, (10) Horse Power, 208 Voltage
T-CP-15VLT3C208 3 Phase Variable Frequency Drive, (15) Horse Power, 208 Voltage
Model Number Variable Frequency Drive 575V Models
T-CP-2VLT3C575 3 Phase Variable Frequency Drive, (2) Horse Power, 575 Voltage
T-CP-3VLT3C575 3 Phase Variable Frequency Drive, (3) Horse Power, 575 Voltage
T-CP-4VLT3C575 3 Phase Variable Frequency Drive, (4) Horse Power, 575 Voltage
T-CP-5VLT3C575 3 Phase Variable Frequency Drive, (5) Horse Power, 575 Voltage
T-CP-7.5VLT3C575 3 Phase Variable Frequency Drive, (7.5) Horse Power, 575 Voltage
T-CP-10VLT3C575 3 Phase Variable Frequency Drive, (10) Horse Power, 575 Voltage
T-CP-15VLT3C575 3 Phase Variable Frequency Drive, (15) Horse Power, 575 Voltage
