Manifold Panel

Manifold Hydronic Zoning Panel

  • Description
  • Specifications
  • Available Configurations
  • Resources

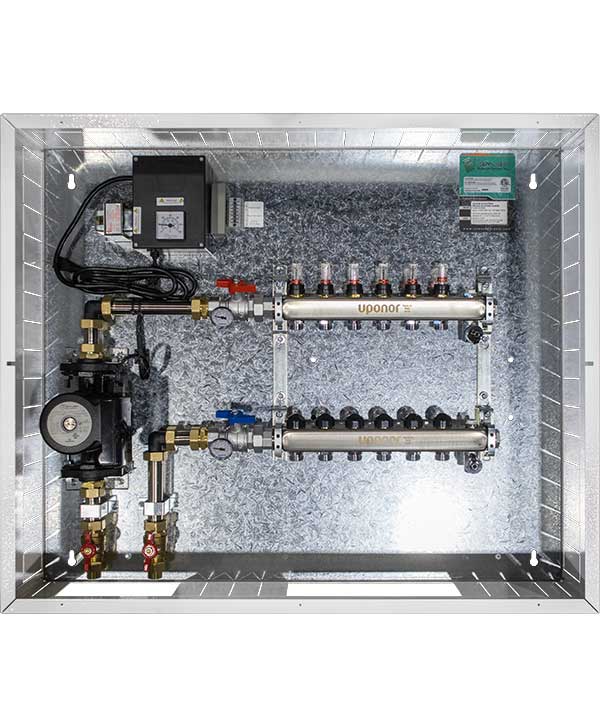

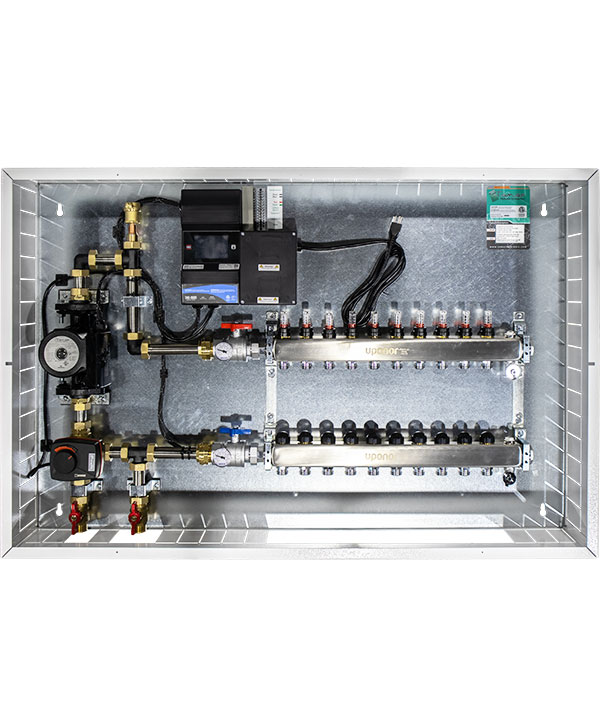

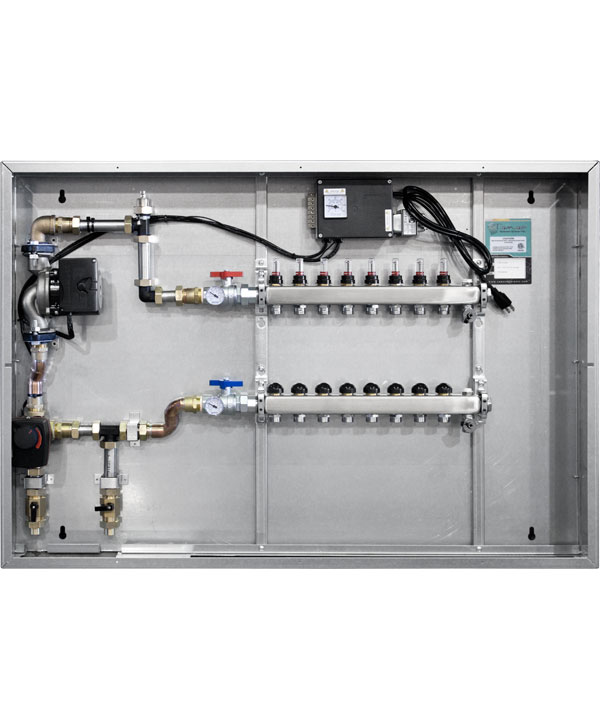

The Tamas Manifold Cabinet has been designed for distributing hydronic heat for radiant floor heating systems. The panel can be utilized for floor warming and area heating such as bathrooms, basements, kitchens, sunrooms and tiled floors.

The panel uses a stainless steel manifold to provide consistent heat distribution through the different zones. A thermostatic mixing valve and 3 speed circulating pumps function to temper and distribute the water to the system.

  • Dimensions

    Height: 30in (770mm)

    Width: 36in (923mm)

    Depth: 6in (143mm)

    Panels over 5 Zones will require a 47" x 30" Enclosure
  • Flow

    Configuration Specific. See Resources.

  • Head

    Configuration Specific. See Resources.

  • Max. Temperature

    95°C / 203°

  • Max. Pressure

    3 Bar / 45 PSI

  • Enclosure

    Galvanized Steel Backpan

    Optional Galvanized Steel Enclosure Available
Model Number Manifold Zone Panels
T-00-ZM-2L Low Temperature Manifold Panel, 2 Zones
T-00-ZM-3L Low Temperature Manifold Panel, 3 Zones
T-00-ZM-4L Low Temperature Manifold Panel, 4 Zones
T-00-ZM-5L Low Temperature Manifold Panel, 5 Zones
T-00-ZM-6L Low Temperature Manifold Panel, 6 Zones
T-00-ZM-7L Low Temperature Manifold Panel, 7 Zones
T-00-ZM-8L Low Temperature Manifold Panel, 8 Zones
T-00-ZM-9L Low Temperature Manifold Panel, 9 Zones
T-00-ZM-10L Low Temperature Manifold Panel, 10 Zones
T-00-ZM-11L Low Temperature Manifold Panel, 11 Zones
T-00-ZM-12L Low Temperature Manifold Panel, 12 Zones

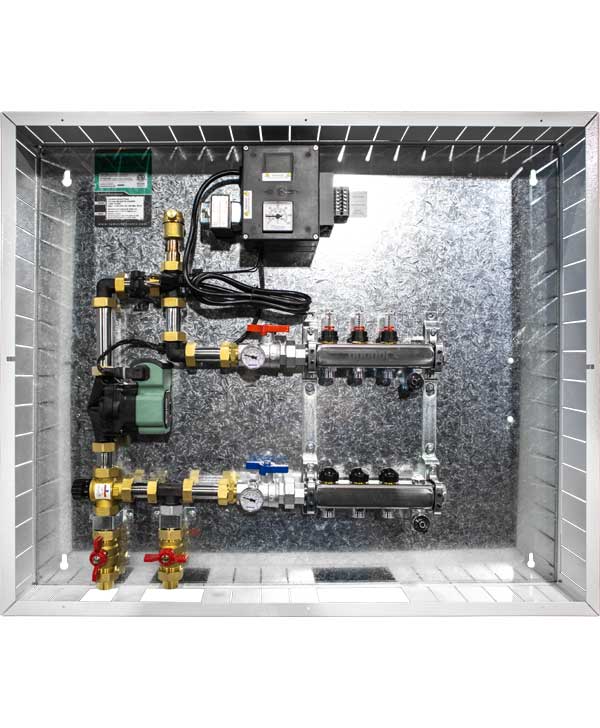

Model Number Manifold Zone Panels with TMV
T-LO-ZM-2L Low Temperature Manifold Panel with TMV, 2 Zones
T-LO-ZM-3L Low Temperature Manifold Panel with TMV, 3 Zones
T-LO-ZM-4L Low Temperature Manifold Panel with TMV, 4 Zones
T-LO-ZM-5L Low Temperature Manifold Panel with TMV, 5 Zones
T-LO-ZM-6L Low Temperature Manifold Panel with TMV, 6 Zones
T-LO-ZM-7L Low Temperature Manifold Panel with TMV, 7 Zones
T-LO-ZM-8L Low Temperature Manifold Panel with TMV, 8 Zones
T-LO-ZM-9L Low Temperature Manifold Panel with TMV, 9 Zones
T-LO-ZM-10L Low Temperature Manifold Panel with TMV, 10 Zones
T-LO-ZM-11L Low Temperature Manifold Panel with TMV, 11 Zones
T-LO-ZM-12L Low Temperature Manifold Panel with TMV, 12 Zones
