Tamas snowmelt panels are a safe, reliable alternative to manual snow and ice removal. HBX control systems provide efficient, real-time operation. Pre-engineered systems are calculated to maximize efficiency through heat exchanger sizing, system pump sizing, and can accommodate facilities requiring a maximum of 3 million BTUs. The panels are built with flexible, multi-system components which can handle driveways, ramps, sidewalks and steps, making the board suitable for residential, commercial and industrial sites.

Dimensions

Height: 36in (902mm)

Width: 24in (610mm)

Depth: 14in (356mm)
Flow

Configuration Specific. See Resources.
Head

Configuration Specific. See Resources.
Max. Temperature

95°C / 203°
Max. Pressure

3 Bar / 45 PSI
Enclosure

Galvanized Steel Backpan with Powder Coated Steel

Model Number	Snow Melt 50K-350K BTU Panels

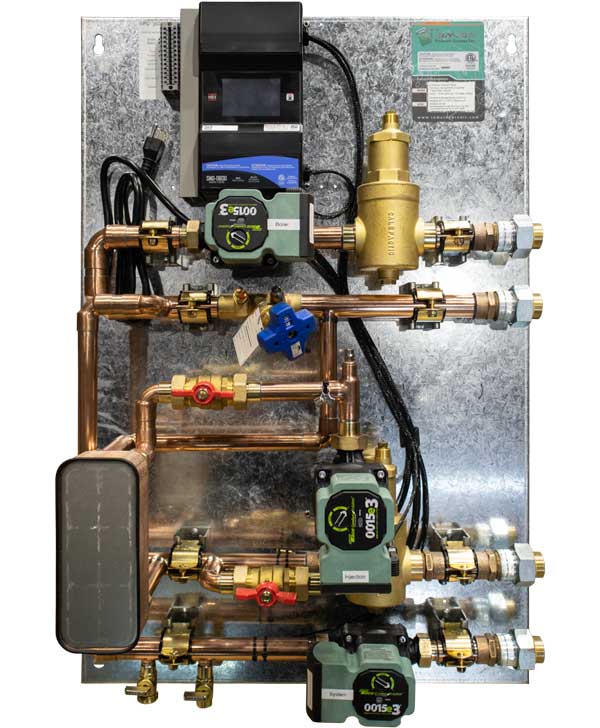

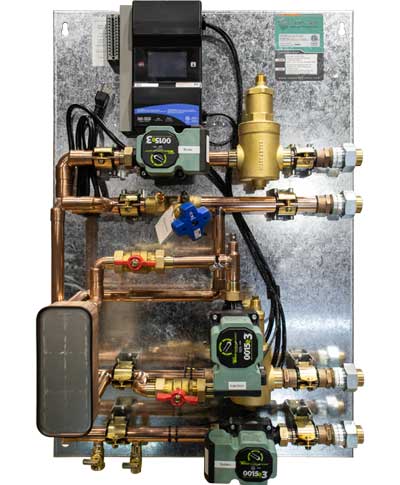

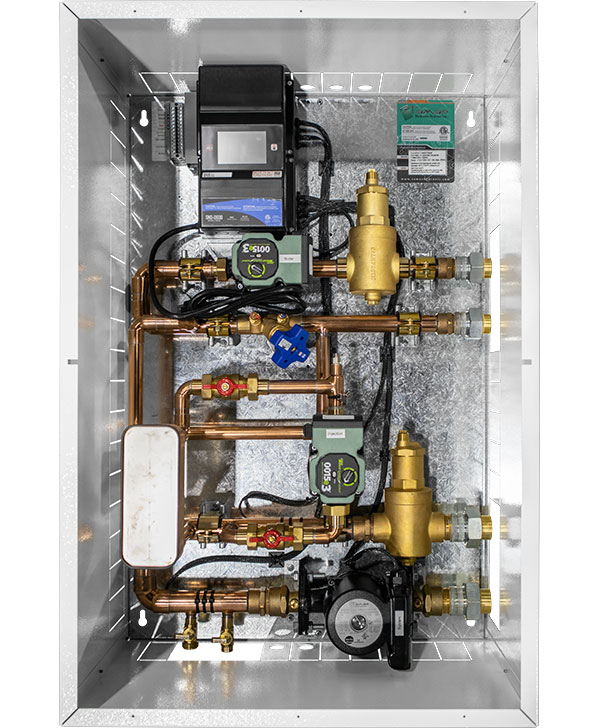

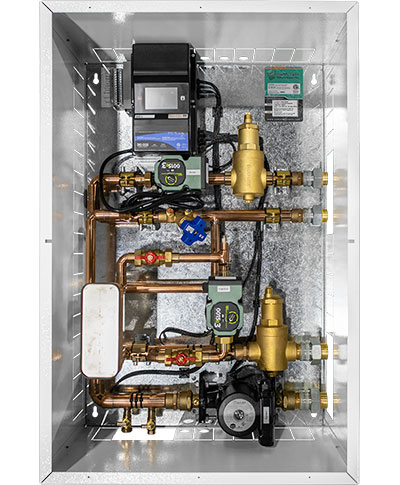

T-SM-HBX-100 HX	Tamas 100,000 BTU Snowmelt Panel with HBX Controls Package

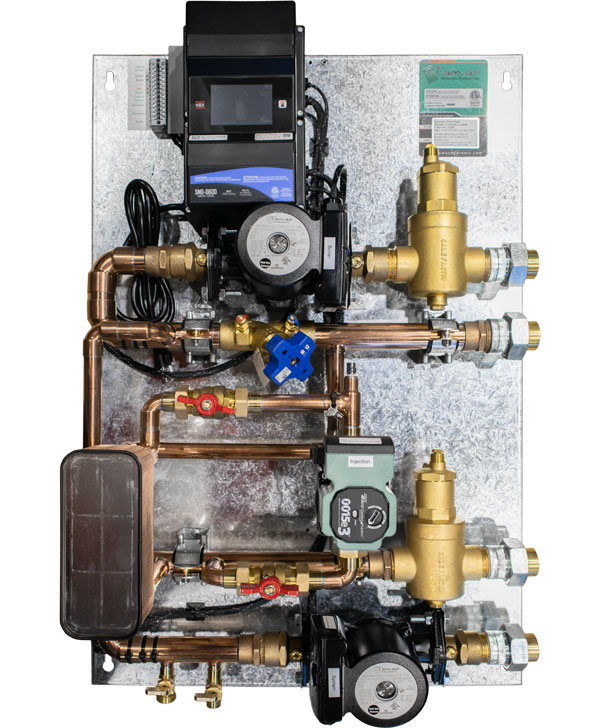

T-SM-HBX-150 HX	Tamas 150,000 BTU Snowmelt Panel with HBX Controls Package

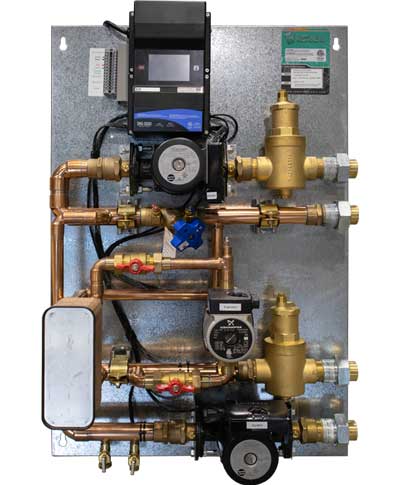

T-SM-HBX-200 HX	Tamas 200,000 BTU Snowmelt Panel with HBX Controls Package
T-SM-HBX-250 HX	Tamas 250,000 BTU Snowmelt Panel with HBX Controls Package
T-SM-HBX-300 HX	Tamas 300,000 BTU Snowmelt Panel with HBX Controls Package
T-SM-HBX-350 HX	Tamas 350,000 BTU Snowmelt Panel with HBX Controls Package
